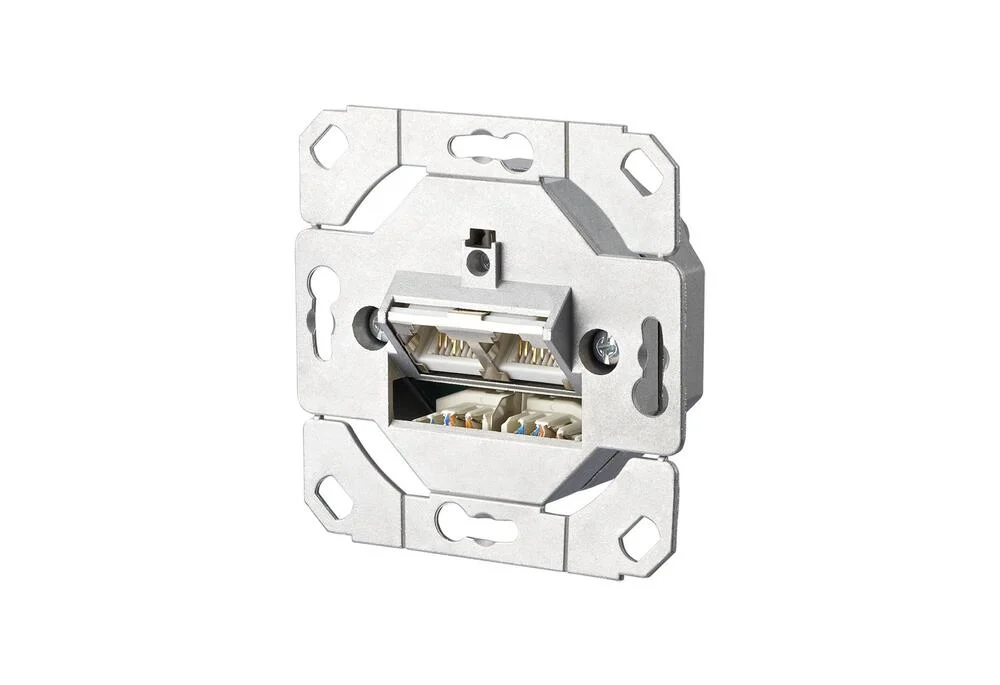

Compact wall outlet for the construction of a passive network infrastructure with the highest quality requirements. The junction box is suitable for connecting telephones up to 10 gbit networks and power supply with poe with up to 90w. The installer can connect the very robust zinc die-cast wall outlet very easily and in the shortest possible time with an lsa installation tool without errors. In addition to the permanent quality control during production, independent test laboratories confirm the very good quality with various certificates.
Specifications
Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : No
Type of fastening : Screwing
Assembly arrangement : Basic element with adapter plate
Type of connector : RJ45 8(8)
With buses/couplings : Yes
Suitable for number of connectors : 2
Category : 6A (IEC)
Color : Silver
Connection type : LSA
Shielded buses : Yes
Shielded housing : Yes
Separate earthing connection : No
With label space : No
Design suitable : Yes
Separate strain relief : Yes
Mounting method shielding connection : Screw
Outlet direction : Inclined
With dust cover : Yes
With terminal resistor : No
Degree of protection (IP) : IP20
Mechanical coding : No
Color coding : No
Width of device (mm) : 69.9
Height of device (mm) : 69.9
Depth of device (mm) : 38.5
