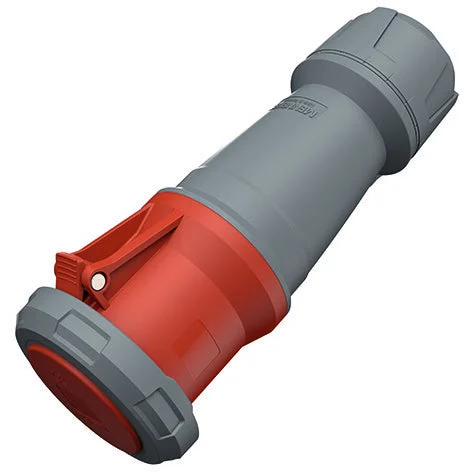

This CEE mating plug from Mennekes’ PowerTOP Plus series is 5-pole and has an IEC current rating of 125A. The red color of the mating plug indicates a voltage level of 400V. The connector plug with heat-resistant interior has locking slides instead of screws and a particularly smooth cable gland with integrated strain relief, sealing and protection against kinking. With an IP67 protection rating, the PowerTOP Plus CEE mating plug is perfect for outdoor applications and harsh conditions.
Specifications
IEC-amperage (A) : 125
Amperage according to UL/CSA (for UL-version) (A) : 100
Number of poles : 5
Voltage according to EN 60309-2 : 380-415 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Contact material : CuZn
Surface treatment contacts : Untreated
Military model : No
