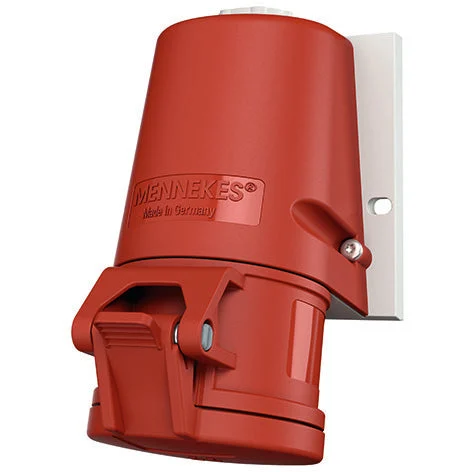

Mennekes Twincontact CEE Wall Outlet – 1343

Mennekes Twincontact cee wall socket surface mounted, plastic, IEC current rating 16A, UL/CSA current rating (if UL-out 20A, 4 poles, voltage according to EN 60309-2 380-415 V (50+60 Hz) red, hour mode 6h, characteristic color red, RAL number 3013, protection category (IP) IP44, connection technology screwless terminal.

Specifications

Model : Surface mounted (plaster)
IEC-amperage (A) : 16
Amperage according to UL/CSA (for UL-version) (A) : 20
Number of poles : 4
Voltage according to EN 60309-2 : 380-415 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Degree of protection (IP) : IP44
Connection system : Screw less terminal
Cable entry : Gland nut
Material : Plastic
Contact material : CuSn
Surface treatment contacts : Untreated
Type of fastening : External mounting
Insulated mounting : No
Military model : No
