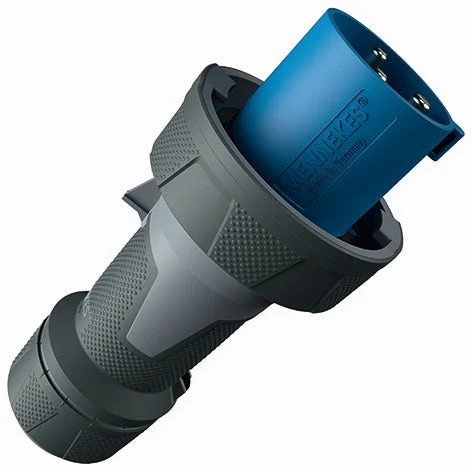

Mennekes PowerTopXtra cee plug, plastic, protection degree (IP) IP67, voltage according to EN 60309-2 230 V (50+60 Hz) blue, characteristic color blue, 3 poles, IEC current rating 63A, connection technology screw terminal, insertion direction straight, cable entry gland, RAL number 5007.
Specifications
IEC-amperage (A) : 63
Amperage according to UL/CSA (for UL-version) (A) : 60
Number of poles : 3
Voltage according to EN 60309-2 : 230 V (50+60 Hz) blue
Clock hour position (h) : 6
Identification color : Blue
RAL-number : 5007
Phase inverter : No
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Cable entry : Gland nut
Angle of plug : Straight
Material : Plastic
Military model : No
