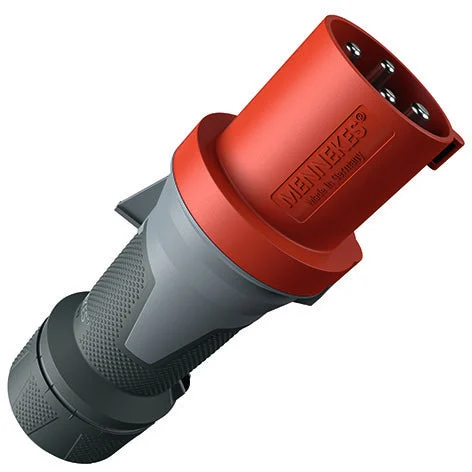

Mennekes PowerTopXtra CEE plug – 13106

Mennekes PowerTopXtra cee plug, plastic, degree of protection (IP) IP44, voltage according to EN 60309-2 400 V (50+60 Hz) red, characteristic color red, 4 poles, IEC current rating 63A, connection technology screw terminal, insertion direction straight, cable entry gland, RAL number 3013.

Specifications

IEC-amperage (A) : 63
Amperage according to UL/CSA (for UL-version) (A) : 60
Number of poles : 4
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Phase inverter : No
Degree of protection (IP) : IP54
Connection system : Screwed terminal
Cable entry : Gland nut
Angle of plug : Straight
Material : Plastic
Contact material : CuZn
Military model : No
