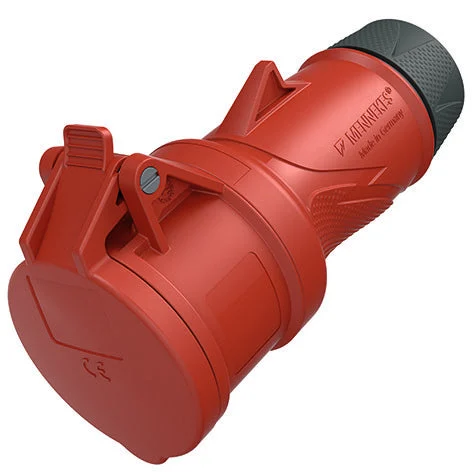

This CEE mating plug from Mennekes’ PowerTOP Xtra series is 5-pole and has an IEC current rating of 32A. The red color of the mating plug indicates a voltage level of 400V. The ergonomic housing of the CEE coupling plug optimally brings together ease of use and injury protection. The grip areas with studs on the housing and rubber gland guarantee safe use under all conditions. In addition, the PowerTOP Xtra CEE mating plug is equipped with strain relief and kink protection.
Specifications
IEC-amperage (A) : 32
Amperage according to UL/CSA (for UL-version) (A) : 30
Number of poles : 5
Voltage according to EN 60309-2 : 380-415 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Degree of protection (IP) : IP54
Connection system : Screw less terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Contact material : CuZn
Surface treatment contacts : Untreated
Military model : No
