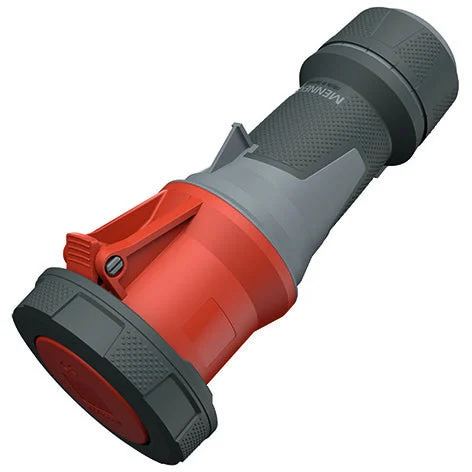

Mennekes PowerTopXtra CEE Coupling plug – 14212

This CEE mating plug from Mennekes’ PowerTOP Xtra series is 5-pole and has an IEC current rating of 63A. The red color of the mating plug indicates a voltage level of 400V. The ergonomic housing of the CEE coupling plug optimally brings together ease of use and injury protection. The molded-on rubber grip surfaces, heat-resistant interior and two latches ensure safe use under all conditions. In addition, the PowerTOP Xtra CEE mating plug is equipped with strain relief and kink protection.

Specifications

IEC-amperage (A) : 63
Amperage according to UL/CSA (for UL-version) (A) : 60
Number of poles : 5
Voltage according to EN 60309-2 : 380-415 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Contact material : CuZn
Surface treatment contacts : Untreated
Military model : No
