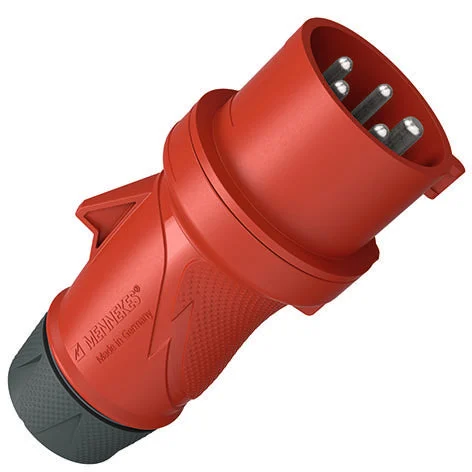

This CEE plug from Mennekes’ PowerTOP Xtra R series is 5-pole and has an IEC current rating of 16A. The red color of the plug indicates a voltage level of 400V. The ergonomic housing of the CEE plug optimally brings together ease of use and injury protection. The grip areas with studs on the housing and rubber gland guarantee safe use under all conditions. In addition, the PowerTOP Xtra R CEE plug with heat-resistant internals and nickel-plated contacts features strain relief and kink protection.
Specifications
IEC-amperage (A) : 16
Amperage according to UL/CSA (for UL-version) (A) : 20
Number of poles : 5
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Phase inverter : No
Degree of protection (IP) : IP54
Connection system : Screwed terminal
Cable entry : Other
Angle of plug : Straight
Material : Plastic
Contact material : CuZn
Military model : No
