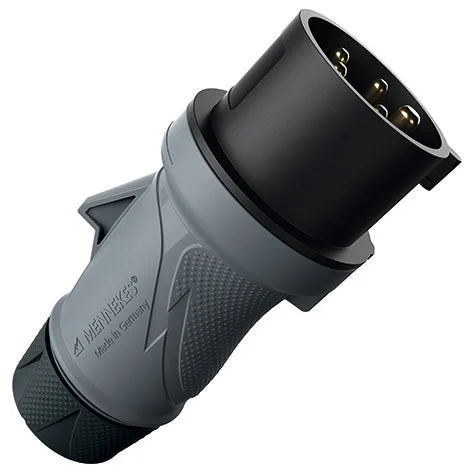

Mennekes CEE plug – 13511

Mennekes cee plug, plastic, degree of protection (IP) IP54, voltage according to EN 60309-2 500 V (50+60 Hz) black, feature color black, 5 poles, IEC current rating 16A, connection technology screw terminal, insertion direction straight, cable entry other, RAL number 9005, hour rating 7h.

Specifications

IEC-amperage (A) : 16
Amperage according to UL/CSA (for UL-version) (A) : 20
Number of poles : 5
Voltage according to EN 60309-2 : 500 V (50+60 Hz) black
Clock hour position (h) : 7
Identification color : Black
RAL-number : 9005
Phase inverter : No
Degree of protection (IP) : IP54
Connection system : Screwed terminal
Cable entry : Other
Angle of plug : Straight
Material : Plastic
Contact material : CuSn
Military model : No
