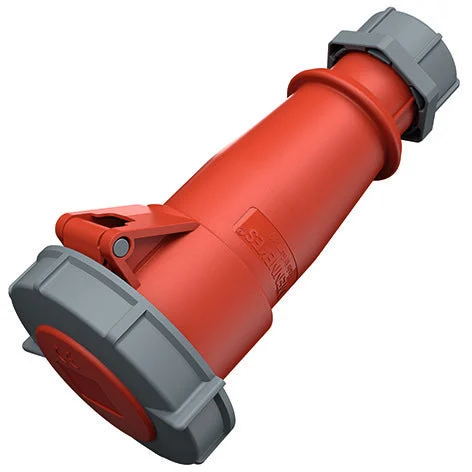

Mennekes CEE Coupling plug – 556

Mennekes cee connector plug, plastic, protection rating (IP) IP67, feature color red, voltage according to EN 60309-2 380-415 V (50+60 Hz) red, connection technology screw terminal, IEC current rating 32A, 4 poles, insertion direction straight, cable entry gland, RAL number 3013.

Specifications

IEC-amperage (A) : 32
Amperage according to UL/CSA (for UL-version) (A) : 30
Number of poles : 4
Voltage according to EN 60309-2 : 380-415 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
RAL-number : 3013
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Contact material : CuSn
Surface treatment contacts : Untreated
Military model : No
