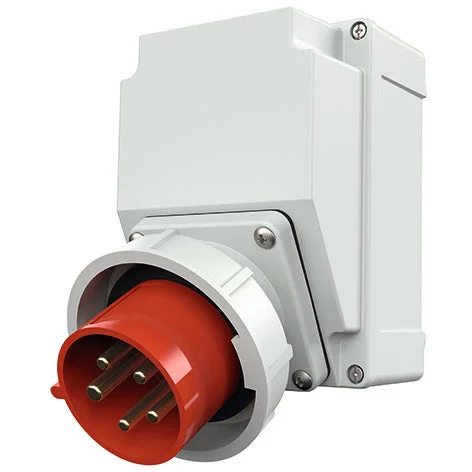

Mennekes cee appliance socket, plastic, construction form attachment plug, degree of protection (IP) IP67, voltage according to EN 60309-2 400 V (50+60 Hz) red, insertion direction straight, IEC current rating 32A, 5 poles, connection technology screw terminal, characteristic color red, nom. (measuring) frequency 50 – 60Hz .
Specifications
IEC-amperage (A) : 32
Amperage according to UL/CSA (for UL-version) (A) : 30
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Rated voltage (V) : 399 V to 400 V
Rated frequency (Hz) : 50 Hz to 60 Hz
Number of poles : 5
Clock hour position (h) : 6
Identification color : Red
Degree of protection (IP) : IP67
Connection system : Screwed terminal
Construction type : Built-up device plug
Phase inverter : No
Angle of plug : Straight
Material : Plastic
Military model : No
