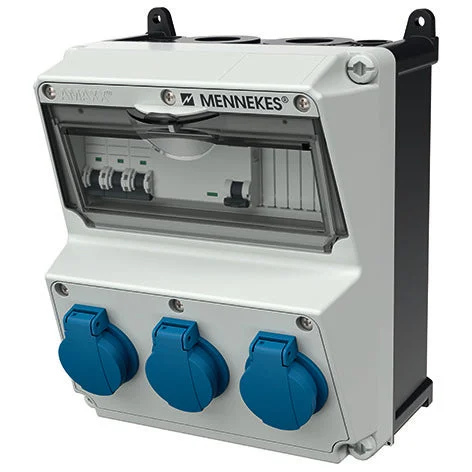

Mennekes AMAXX CEE Socket Combination – 920056

Mennekes AMAXX cee socket combination, gray, (WxDxH) 225x175x260mm, earth leakage circuit breaker 30 mA (standard), degree of protection (IP) IP44, protection 1 3xAutomated, power supply/connection option 1 line (branch line), protection overcurrent switch, 3 peripheral sockets, housing plastic.

Specifications

CEE socket outlet 16 A : None
CEE socket outlet 32 A : None
CEE socket outlet 63 A : None
CEE socket outlet 125 A : None
Number of socket outlets with protective contact (SCHUKO) : 3
Number of socket outlets Danish standard (earthing pin) : 0
Number of socket outlets Swiss standard type 13 : 0
Number of socket outlets Swiss standard type 15 : 0
Number of socket outlets Swiss standard type 23 : 0
Number of socket outlets Swiss standard type 25 : 0
Other fixtures and/or empty locations : 0
Protection : Over current switch
Leakage current type : A
Earth leakage switch : Earth leakage switch with IFN 30 mA (standard)
Material : Plastic
Contact material : CuSn
Surface treatment contacts : Untreated
Power supply/connection possibility : 1 cable (branch line)
Cable length (m) : 0
Handling : Wall mounting
Degree of protection (IP) : IP44
Military model : No
Color : Grey
Height (mm) : 260
Width (mm) : 225
Depth (mm) : 175
