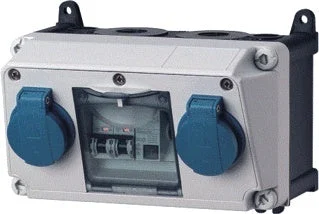

The MENNEKES receptacle combination unit AMAXX is ready and wired for installation. It features enclosure protection of Type IP 44. The enclosure is an AMAPLAST-enclosure measuring 130 x 225 mm (height x width). It can be lead-sealed and is suitable for either internal or external fixing. Its base is black and the front cover sports an electric grey color (RAL 7035). The unit has dual thread cover screws and the fusing is fitted on pull out DIN rails beneath a transparent window, which can be opened downwards and locked with a padlock. The receptacles come with an angled plugging direction.
The unit is fitted with and fused with the following:
- 2 SCHUKO receptacles of 16A 2p+E 230V
- 2 MCBs of 16A 1p C 10KA (Doepke)
- 1 RCD of 25A 2p IFN= 0.03 A (Doepke)
Regarding cable entry and supply, the unit has 2 M 25 at the top (closed), 2 M 25 at the bottom (also closed), 2 M 20 at the top and at the bottom (closed). It is suitable for 1 cable up to 3 x 10 mm.
Specifications
CEE socket outlet 16 A : None
CEE socket outlet 32 A : None
CEE socket outlet 63 A : None
CEE socket outlet 125 A : None
Number of socket outlets with protective contact (SCHUKO) : 2
Number of socket outlets Danish standard (earthing pin) : 0
Number of socket outlets Swiss standard type 13 : 0
Number of socket outlets Swiss standard type 15 : 0
Number of socket outlets Swiss standard type 23 : 0
Number of socket outlets Swiss standard type 25 : 0
Other fixtures and/or empty locations : 0
Protection : Over current switch
Leakage current type : A
Earth leakage switch : Earth leakage switch with IFN 30 mA (standard)
Material : Plastic
Contact material : CuSn
Surface treatment contacts : Untreated
Power supply/connection possibility : 1 cable (branch line)
Cable length (m) : 0
Handling : Wall mounting
Degree of protection (IP) : IP44
Military model : No
Color : Grey
Height (mm) : 130
Width (mm) : 225
Depth (mm) : 175
