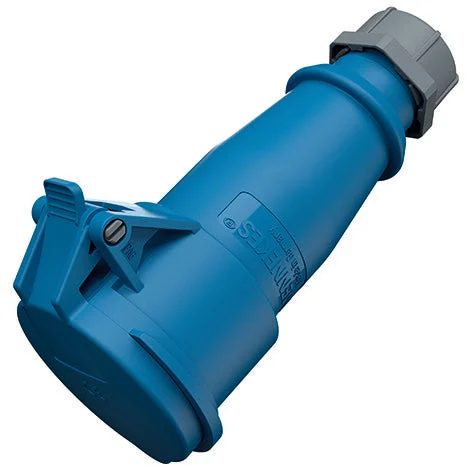

Mennekes AM-TOP cee connector plug, plastic, protection rating (IP) IP44, feature color blue, voltage according to EN 60309-2 200-250 V (50+60 Hz) blau, connection technology screw terminal, IEC current rating 16A, 3 poles, insertion direction straight, cable entry gland, RAL number 5007.
Specifications
IEC-amperage (A) : 16
Amperage according to UL/CSA (for UL-version) (A) : 20
Number of poles : 3
Voltage according to EN 60309-2 : 200 – 250 V (50+60 Hz) blue
Clock hour position (h) : 6
Identification color : Blue
RAL-number : 5007
Degree of protection (IP) : IP44
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Material : Plastic
Contact material : CuZn
Surface treatment contacts : Untreated
Military model : No
