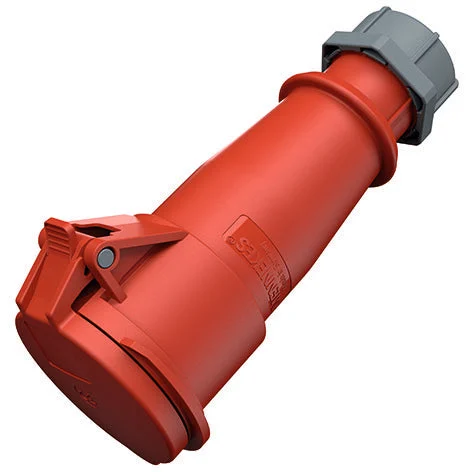

Mennekes AM-TOP cee-coupling plug, plastic, protection rating (IP) IP44, feature color red, voltage according to EN 60309-2 380-415 V (50+60 Hz) red, connection technology screw terminal, IEC current rating 32A, 5 poles, insertion direction straight, cable entry gland, RAL number 3013.
Specifications
IEC-amperage (A) : 32
Amperage according to UL/CSA (for UL-version) (A) : 30
Voltage according to EN 60309-2 : 400 V (50+60 Hz) red
Clock hour position (h) : 6
Identification color : Red
Connection system : Screwed terminal
Angle of plug : Straight
Cable entry : Gland nut
Military model : No
