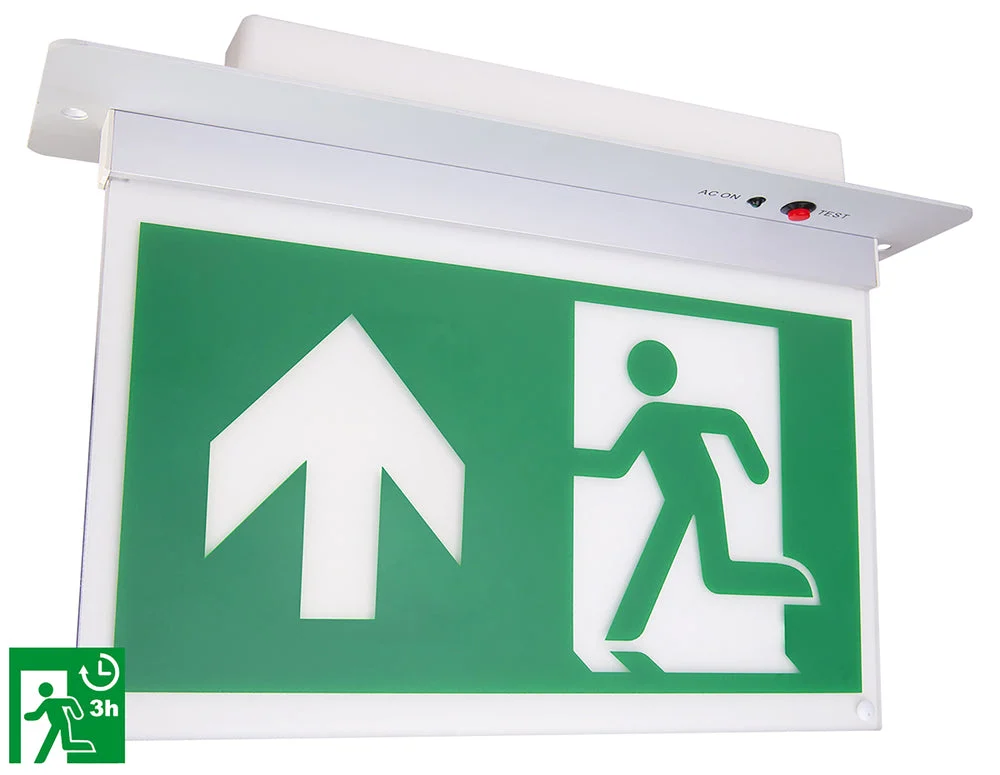

Megaman TEMPUS Emergency Lighting Fixture – MM10978

Megaman TEMPUS emergency lighting fixture, (lxw) 316x75mm, temperature 6500K, system power 3.5W, recessed, power system decentralized (individual b, housing white, degree of protection (IP) IP20, rated voltage 220 – 240V, application indicator single side, rated operating time 0 – 3h, voltage type AC.

Specifications

Mounting method : Built-in
Function : Escape route lighting/signage
Suitable for labelling type : Insert sheet/plate
Type of indicator : Double-sided
With pictogram : Yes
Monitoring equipment : Test button
Wiring system : Continuous circuit/emergency circuit
With remote switch connection : No
With remote control : No
Power supply system : Peripheral (individual battery)
Battery quality : NiMH
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : Other
Number of lighting heads : 1
Material : Aluminum
Color housing : White
Material cover : Other
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 25 mA to 25 mA
Type of control gear : Not required
Exchangeable control gear : No
Light distributor : Diffuser lens/optic/panel
Max. number of luminaires per miniature circuit breaker B16 : 20
Energy efficiency class of the built-in lamp : Other
Max. number of luminaires per miniature circuit breaker C16 : 40
Rated life time L70/B50 at 25 °C (h) : 50000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 70
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) (%) : 50
Constant light output (CLO) : Yes
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : I
Luminaire with limited surface temperature, sign “D“ : No
Rated ambient temperature according to IEC62722-2-1 (°C) : 0 °C to 40 °C
Max. system power (W) : 2.8
Rated luminous flux according to IEC 62722-2-1 (lm) : 35
Luminous flux in standby mode (lm) : 35
Colour temperature (K) : 6500 K to 6500 K
Power factor : 0.4
Recognition distance (m) : 31
Nominal operation time (h) : 3 h to 3 h
Flickering value Pst LM : 1
Stroboscope effect value SVM : 0.4
Width (mm) : 365
Height/depth (mm) : 238
Length (mm) : 100
Built-in width (mm) : 255
Built-in height/depth (mm) : 50
Built-in length (mm) : 90
Type of wiring : Ending
Number of poles : 3
Conductor cross section (mm²) : 0.75
Connection type : Screw connection
