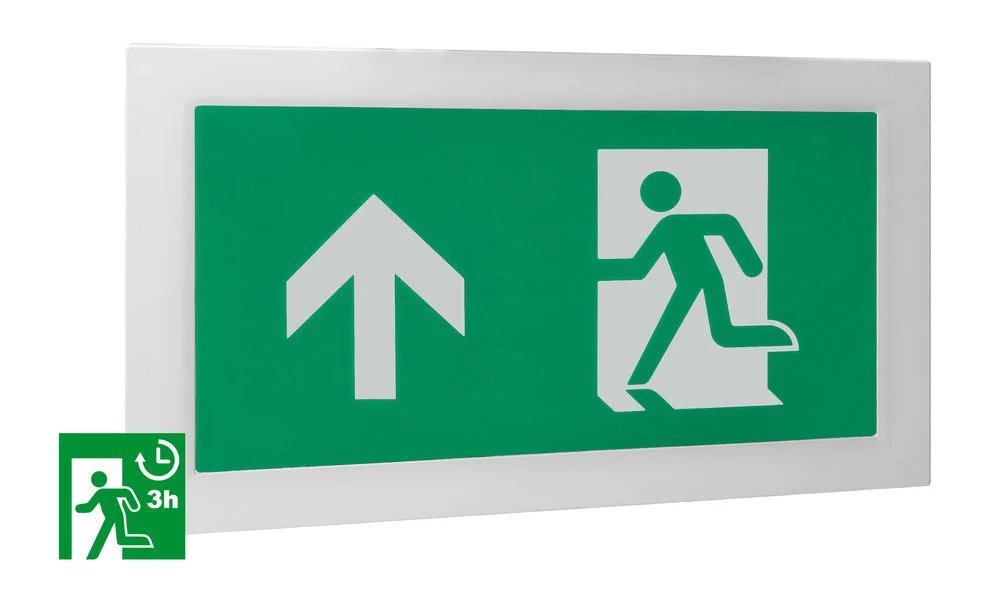

Megaman TEMPUS emergency lighting fixture, (lxw) 54x316mm, effective luminous flux according to IEC 35lm, luminous flux in standby mode 35lm, temperature 6500K, system power 3.5W, wall mounted, power supply system decentralized (individual b, housing white, degree of protection (IP) IP20, rated voltage 220 – 240V.
Specifications
Mounting method : Wall surface mounted
Function : Escape route lighting/signage
Suitable for labelling type : Insert sheet/plate
Type of indicator : Single-sided
With pictogram : Yes
Monitoring equipment : Test button
Wiring system : Continuous circuit/emergency circuit
With remote switch connection : No
With remote control : No
Power supply system : Peripheral (individual battery)
Battery quality : NiMH
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 1
Lamp holder : Other
Number of lighting heads : 1
Material : Plastic
Color housing : White
Material cover : Other
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 150 mA to 150 mA
Type of control gear : Not required
Exchangeable control gear : No
Light distributor : Diffuser lens/optic/panel
Max. number of luminaires per miniature circuit breaker B16 : 28
Energy efficiency class of the built-in lamp : Other
Max. number of luminaires per miniature circuit breaker C16 : 40
Rated life time L70/B50 at 25 °C (h) : 50000
Lumen maintenance at median useful life of 50,000 hrs at 25 °C ambient (tq) (%) : 70
Lumen maintenance at median useful life of 100,000 hr at 25 °C ambient (tq) (%) : 50
Constant light output (CLO) : Yes
Degree of protection (IP) : IP20
Impact strength : IK02
Protection class : I
Luminaire with limited surface temperature, sign “D“ : No
Rated ambient temperature according to IEC62722-2-1 (°C) : 0 °C to 40 °C
Max. system power (W) : 3.5
Rated luminous flux according to IEC 62722-2-1 (lm) : 35
Luminous flux in standby mode (lm) : 35
Colour temperature (K) : 6500 K to 6500 K
Power factor : 0.4
Recognition distance (m) : 29
Nominal operation time (h) : 3 h to 3 h
Flickering value Pst LM : 1
Width (mm) : 316
Height/depth (mm) : 196
Length (mm) : 54
Type of wiring : Ending
Number of poles : 2
Conductor cross section (mm²) : 0.75
Connection type : Plug-in connection
