About this item
- Fit for 12mm diameter shaft
- Use for pools and spa pumps
- Mechanical 108-12 shaft seal replacement
- Includes two seals made of ceramic and graphite
- Temperature from -20 degrees C to 80 degrees C
Specifications:
Seal Size:
Height: 24.5mm / 0.96-inch
Inner Diameter: 12mm / 0.47-inch
Outer Diameter(Max.): 22mm / 0.87-inch
Ring Size:
Inner Diameter: 13.1mm / 0.52-inch
Outer Diameter: 26.3mm / 1.04-inch
Height: 6.1mm / 0.24-inch
Model: 108-12
Pressure: 0-0.6Mpa
Line Speed: less than or equal to 8m/s
Temperature: -4 degrees F (-20 degrees C) to 176 degrees F (80 degrees C)
Description:

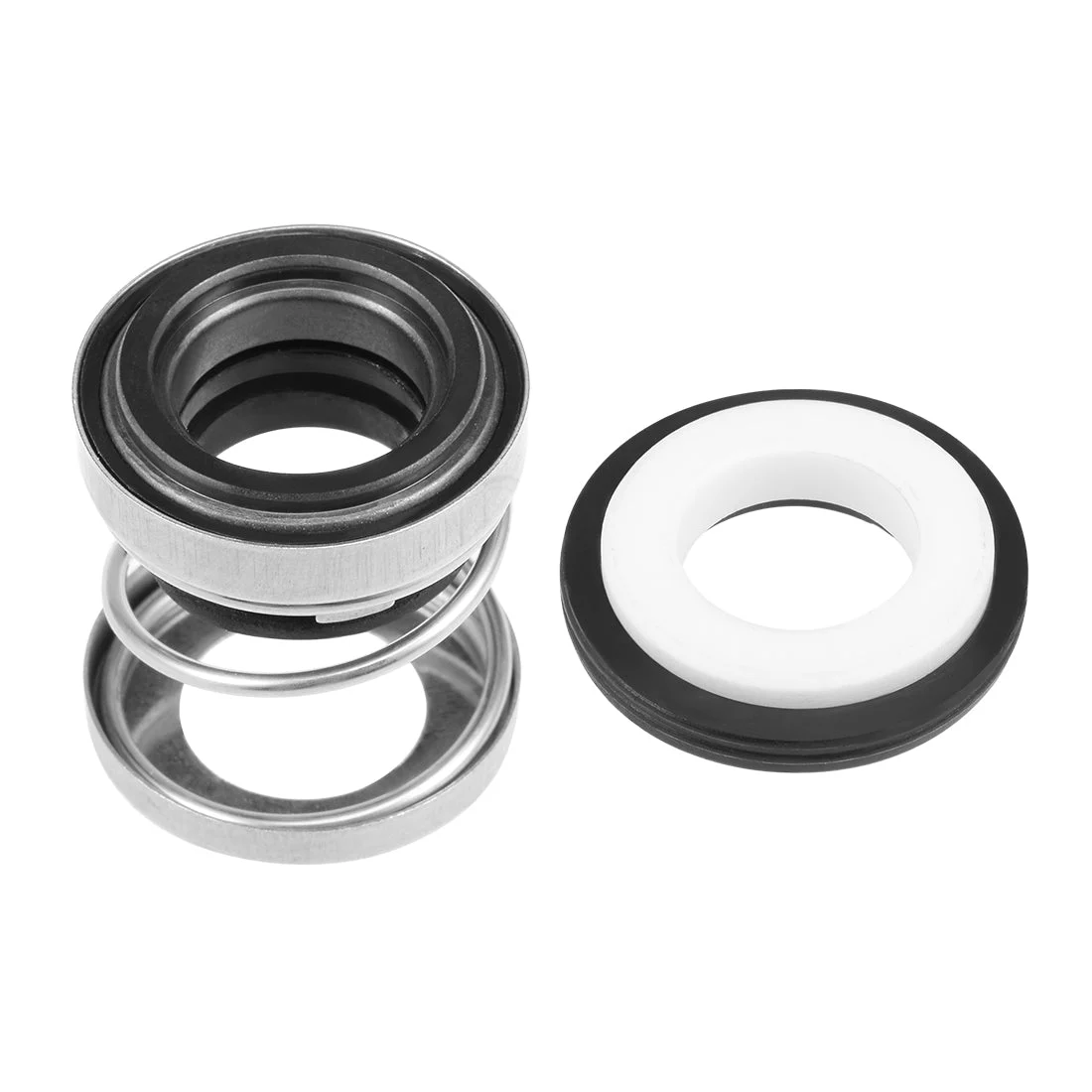

Mechanical seals for pumps.
Includes two seals made of ceramic and graphite.
Can work in water, oil, and other weakly corrosive media.
It is necessary to prevent aging, cracking, stickiness and loss of elasticity due to high temperatures.
