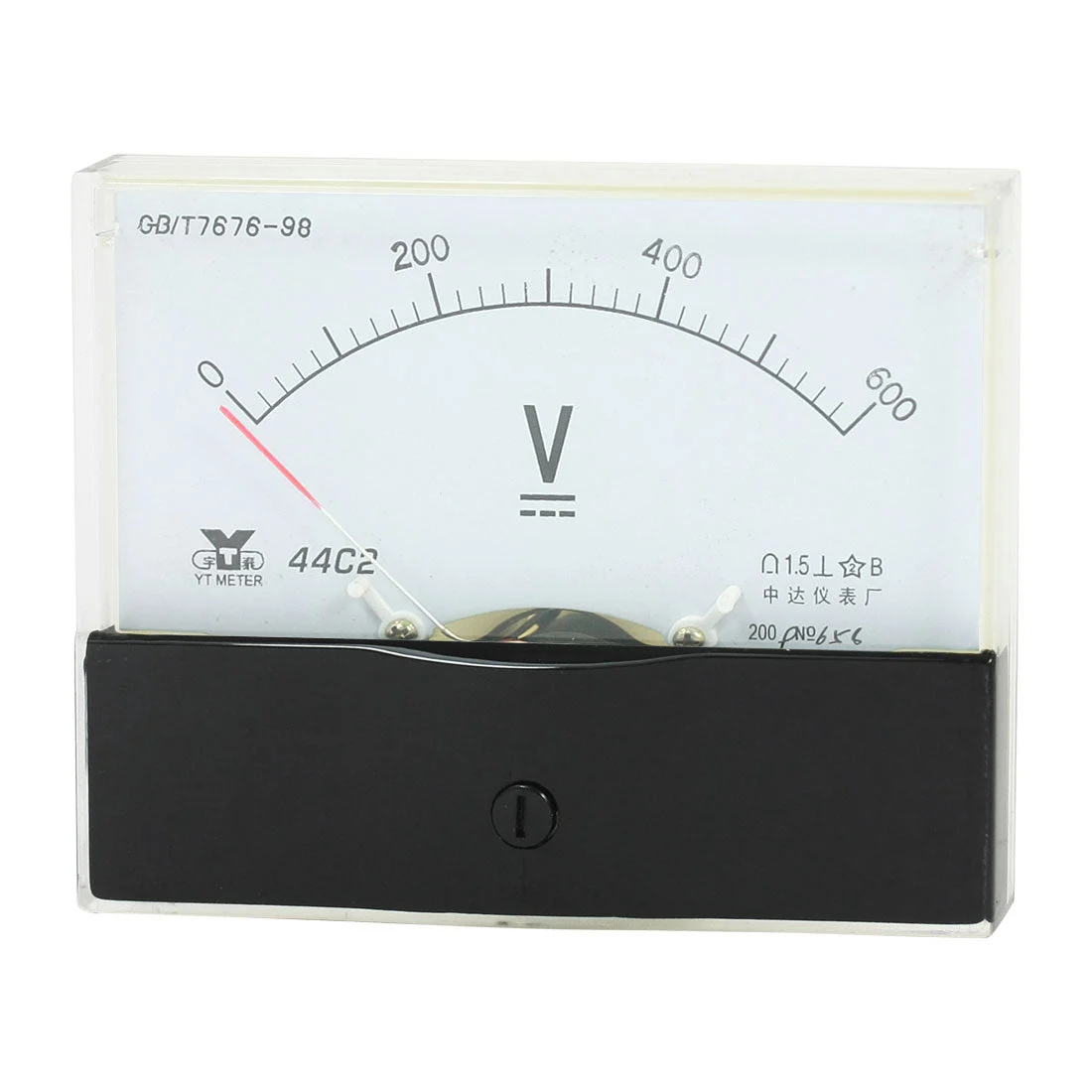

Measurement Tool Panel Mount Analog Voltmeter Volt Meter DC 0 – 600V Measuring Range 44C2

About this item

• Product Name : Analog Voltmeter;Type : 44C2;Measuring Current Range : DC 0-600V
• Accuracy : 1.5;Operating Temperature : -20 ~40°C;Insulation Force : AC 2KV, 50Hz
• Panel Size(Approx) : 100 x 80 x 12mm / 3.9″ x 3.1″ x 0.47″(L*W*T);Thread Size : LongOne: 4 x 11mm / 0.16″ x 0.43″(D*L)Short One: 4 x 9mm / 0.16″ x 0.35″(D*L)
• Overall Depth(Not Included Screw ) : 48mm / 1.9″;Color : Black, White, Clear
• Net Weight : 129g;Package Content : 1 x Analog VoltmeterSeveral Installing Parts

• Measures voltage range of DC 0-600V, 1.5 class accuracy.
• Clear and easy to read scale and a button for fine tuning the dial.
