About this item
- Model: ME-8112 ; Cross Roller Plunger Type
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:

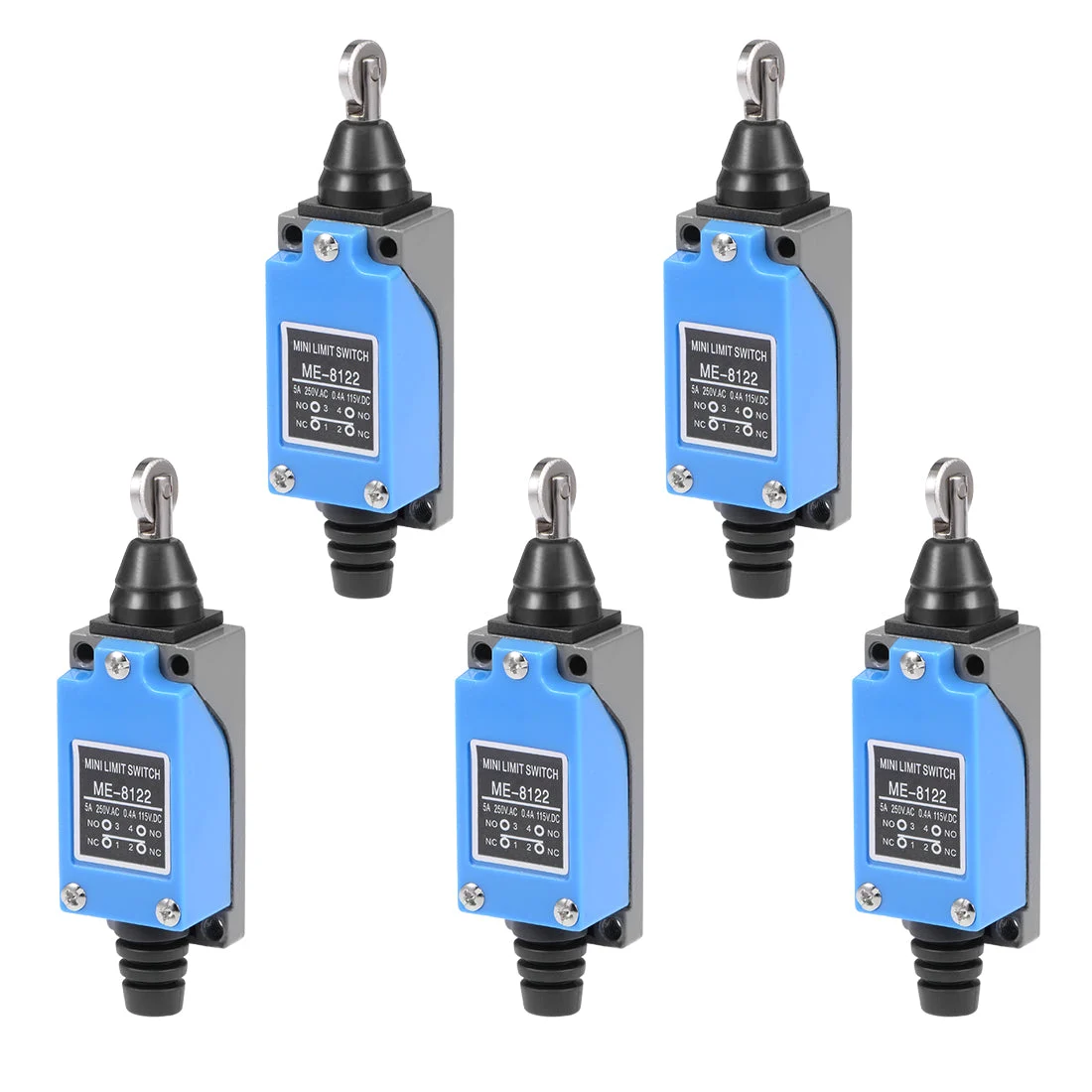

Product Name: Limit Switch
Model: ME-8122
Actuator Type: Cross Roller Plunger Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2″ x 0.83″ (L*W)
The roller plunger can be operated in a wide range by employing a cam, Dog, cylinder, or auxiliary actuator.
Position detection accuracy is high.
Operating Characteristics:
OF max.: 1100g (10.78N)
RF min.: 250g (2.45N)
PT max.: 2mm
OT min.: 0.6mm
MD max.: 1mm
OP: 37+/-0.8mm
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Zine alloy and intensive plastic shell, strong and hightly rigid construction.
- Smooth operation with highter OT.
- Brass contacts with 30% silver contained. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
