About this item
- Model: ME-8111; Plunger Type
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
- Easy-to-wire, smooth operation and reliable
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
Specification:

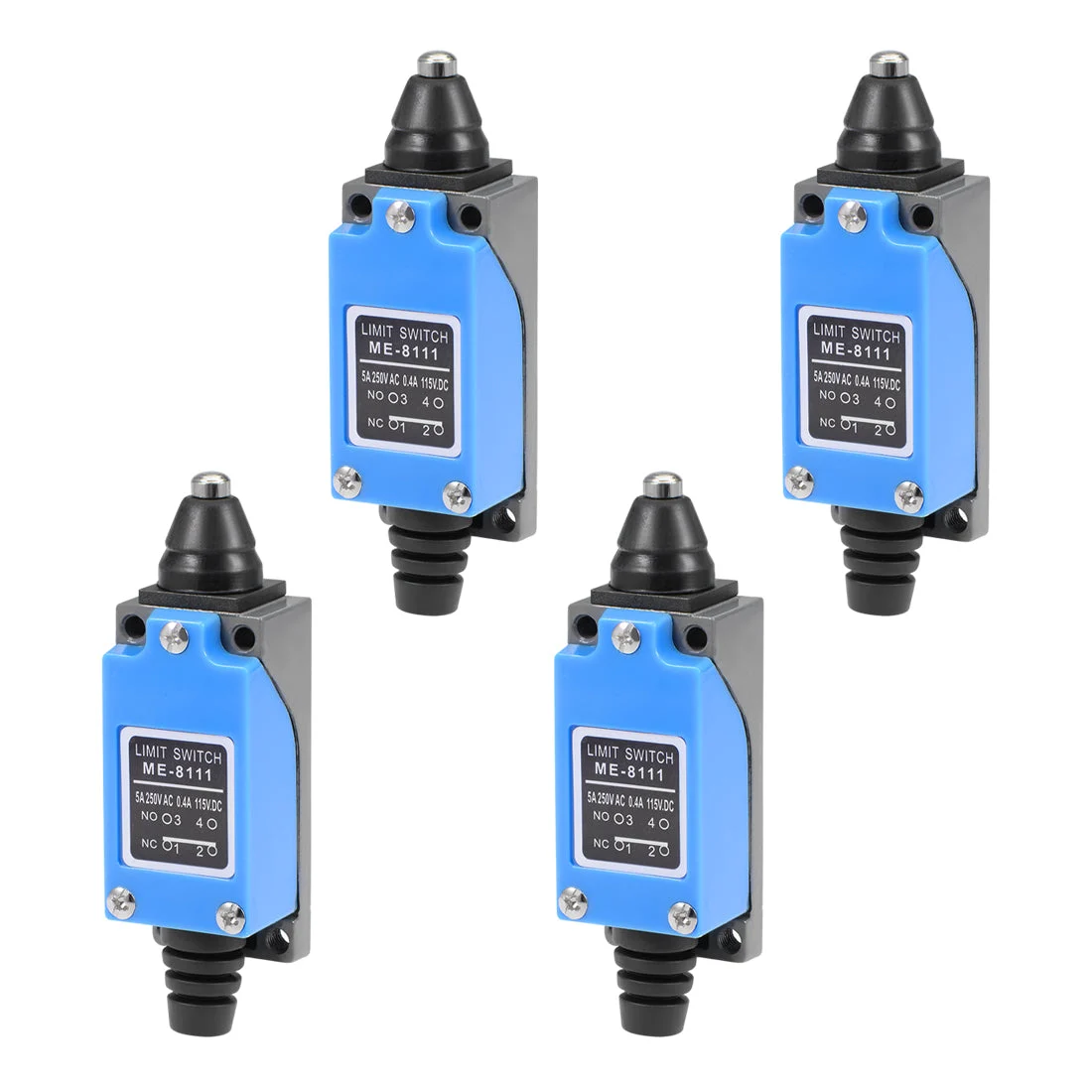

Product Name: Limit Switch
Model: ME-8111
Actuator Type: Plunger Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2″ x 0.83″ (L*W)
The plunger operated by hydraulic pressure or air cylinder power detects positions highly accurately.
The plunger must be installed according to the movement of the dog so that an incorrect load will not be imposed on the plunger.
Operating Characteristics:
OF max.: 1100g (10.78N)
RF min.: 250g (2.45N)
PT max.: 2mm
OT min.: 0.6mm
MD max.: 1mm
OP: 26+/-0.8mm
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Zine alloy and intensive plastic shell, strong and hightly rigid construction.
- Smooth operation with highter OT.
- Brass contacts with 30% silver contained. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
