About this item

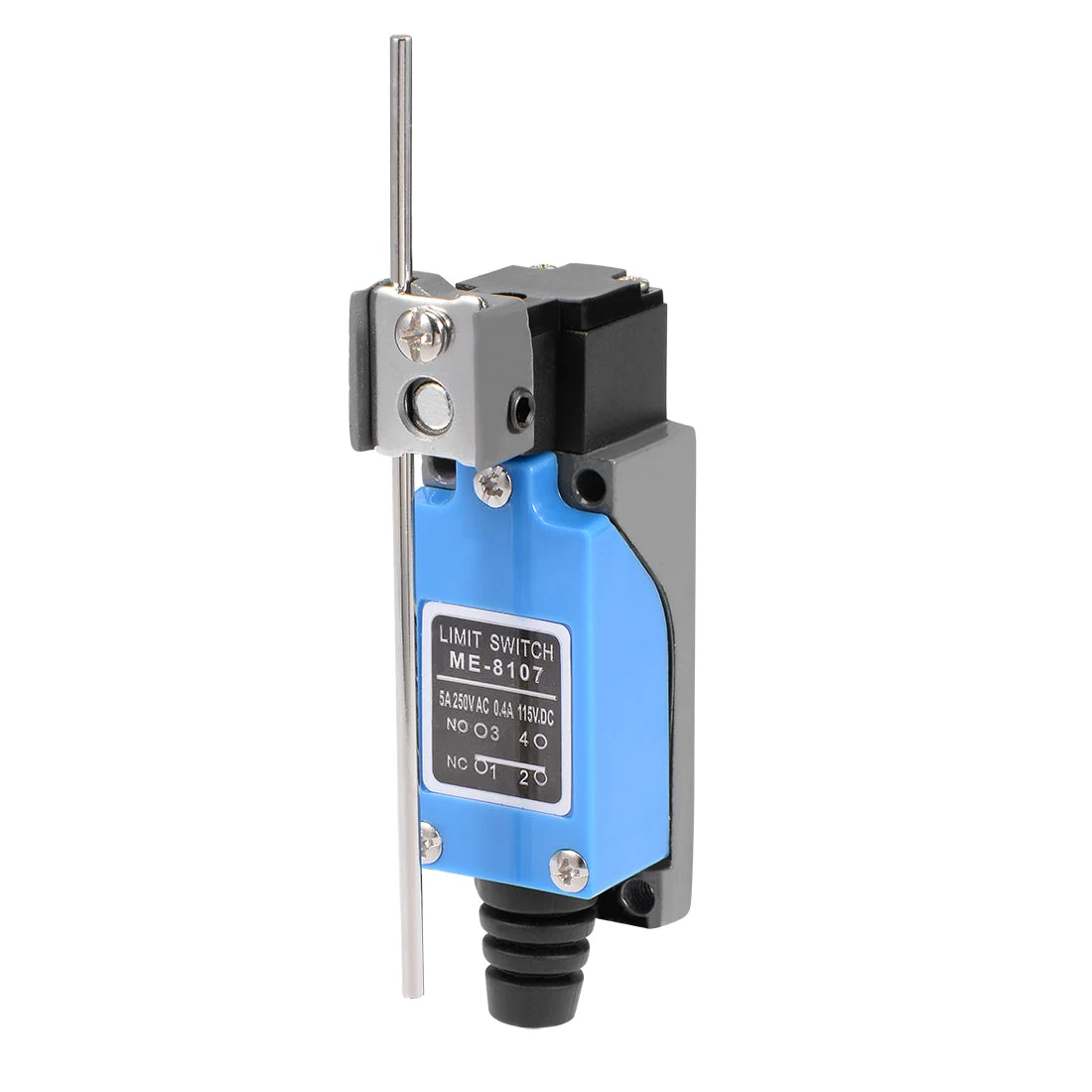

- Model: ME-8107; Adjustable Rod Lever
- built-in basic switch with good electrical conductivity
- Able to withstand some washdowns, shock and vibration
- Easy-to-wire, smooth operation and reliable
- Applying to printer ,3D printer,endstop,CNC router,laser,light switch,wobble light,automatic pantry light switch,garage door,door operated switch,closet door switch,door switch.
Specification:
Product Name: Limit Switch
Model: ME-8107
Actuator Type: Adjustable Rod Lever Type
Rated Voltage: 5A 250V AC / 0.4A 115V DC
Contact Configuration: 1NC+1NO
Body Size: 64 x 28 x 25mm (L*W*T)
Mounting Hole Size: M5
Mounting Hole Distance: 56 x 21mm / 2.2″ x 0.83″ (L*W)
This lever is convenient when the dogs are wide or not uniform in size.
The OF required by this lever is smaller than that of any other rotating actuator used for Limit Switches.
The length of the rod is adjustable and the rod itself can be bent easily.
Operating Characteristics:
OF max.: 700g (6.86N)
RF min.: 70g (0.69N)
PT max.: 30°
OT min.: 60°
MD max.: 15°
TT: 90°
Description:
- Double circuit limit switch with build-in double reed mechanism.
- Zine alloy and intensive plastic shell, strong and hightly rigid construction.
- Smooth operation with highter OT.
- Brass contacts with 30% silver contained. Easy-to-wire design.
- This Limit Switch can be widely used in various mechanical to monitor the position of moving parts of machines and control circuit and auxiliary circuit for terminal limit protection.
