About this item
- Plastic NC Door Contact Switch
- The reed switch is an electrical switch operated by an applied magnetic field.
- Will make Sense Door Closer at Roughly 16mm
- Screw Surface Mount
- Work as an anti-theft alarm, perfect for wood door and window.
Description:
1.Screw Mounted for easily install.
2.The reed switch is an electrical switch operated by an applied magnetic field.
3.Switch Type: NC means Normally Closed:When the magnet together, the circuit is conductive( light on ); when the magnet separate, the circuit is not conductive ( light off ).
4.Work as an anti-theft alarm, perfect for wood door and window.
Specification:

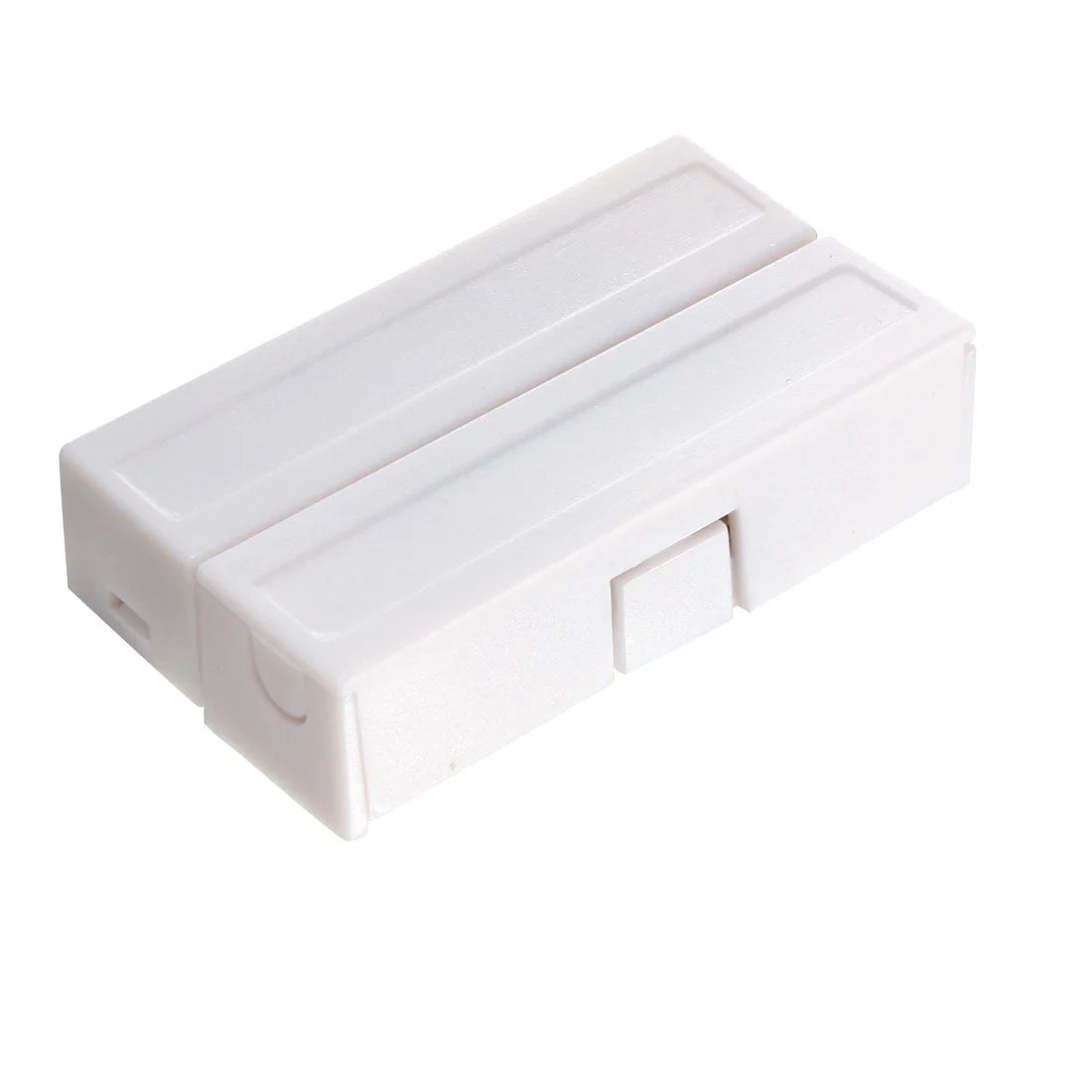

Product Name: Magnetic Door Switch
Model: MC-51
Contact Type: NC (Normally Closed)
Actuation Distance: 16mm
Max. Current: 0.3A
Max. Power: 3W
Working Voltage: DC200V
Each Size(Approx): 50 x 14 x 12mm / 1.97 x 0.55 x 0.47-inch (L*W*H)
Material: Plastic
Color: White
Net Weight: 23g
Package Content:
1 x Magnetic Door Switch, Some Install Parts
Note:
Door magnetic induction can only provide a switch signal, which can not directly load the power, nor directly connect the lamp!
