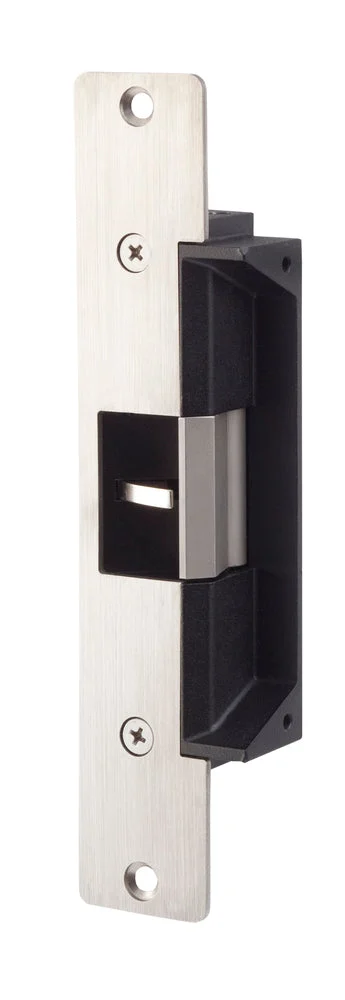

MaaslAnd Electric Door Lock – 320PTU

Special electric door opener that is built into the frame opposite the day bolt of the Nemef central lock with day bolt blocking model 649-47 to lock or unlock it. Because the mechanical lock is equipped with a day bolt blocking and the electric door opener is equipped with a special ANSI lip, the day bolt cannot be pushed back when the door is locked (not to ‘flip’). This makes this door opener comply with the Police Safety Certification guidelines for access doors to common areas.

Specifications

Model : Safety lock opener
Type of latch : Other
Construction type : Symmetric
Built-in position : Vertical
Height (mm) : 133
Width (mm) : 44
Depth (mm) : 29
Assembly arrangement : Frame part
Voltage (V) : 12 V to 24 V
With adjustment : No
With mechanical unlocking : No
With feedback signal : Yes
Opening direction (DIN) : Left/right
Water protected : No
Mounting method : Built-in
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Type of current : AC/DC
Principle of operation : Adjustable
Compatible with Amazon Alexa : No
IFTTT support available : No
Pulse contact : No
Adjustable door opener latch : No
Adjustable door opener : No
Adjustable strike plate : No
Latch guide integrated : No
For latch bolt slide : No
Unlocking method : Strengthen model
Continuous operation (100 % ED) : Yes
Mechanical unlock : No
Suitable for fire protection door : No
Suitable for smoke protection door : No
Forend shape : Angular
With strike plate : Yes
Shape of strike plate : Flat
Material strike plate : Stainless steel
Basic color of strike plate : Silver
Length of strike plate (mm) : 202
Width of strike plate (mm) : 36
Thickness of strike plate (mm) : 3
Deadbolt outcut : No
For bolt switch contact prepared : No
Utility category according to EN 14846 : Other
Lasting functionability according to EN 14846 : Other
Mass of door, clamp force according to EN 14846 : Other
Suitable for fire- and smoke protection doors according to EN 14846 : Other
Safety – personal protection according to EN 14846 : Other
Environmental condition according to EN 14846 : Other
Safety – burglary protection according to EN 14846 : Other
Protection effect electric operating mode according to EN 14846 : Other
Protection effect mechanic operating mode according to EN 14846 : Other
