About this item

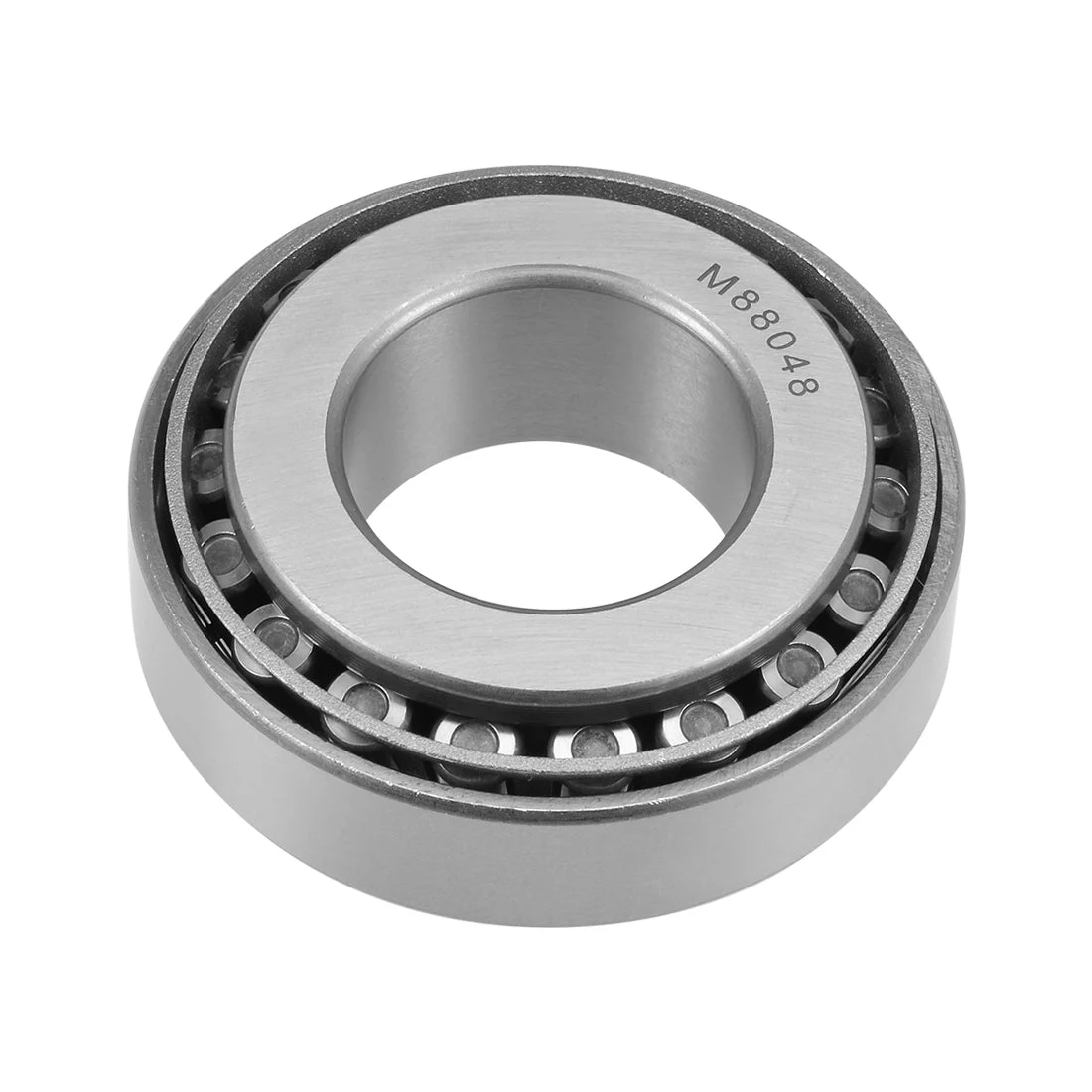

- Model: M88048/M88010 (Bore: 33.338mm / 1.3125″, Outer Diameter: 68.263mm / 2.6875″, Width: 22.225mm / 0.875″)
- Single row tapered roller bearings must be used either with a second bearing or as a matched pair
- Components are separable and interchangeable that easy for maintenance
- Features low friction and low noise that provide operational reliability
- Static Load Rating of 77.4kN and Dynamic Load Rating of 76.3kN
Description:
- Single Row Tapered Roller Bearings are designed to accommodate combined loads.
- These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
- The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
- The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
- This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.
Specification:
Cone Model: M88048
Cup Model: M88010
Material: Chrome Steel
Bore Diameter: 33.338mm / 1.3125″
Outside Diameter: 68.263mm / 2.6875″
Total Thickness (T): 22.225mm / 0.875″
Dynamic Load Rating (Cr): 76300N
Static Load Rating (Cor): 77400N
