About this item

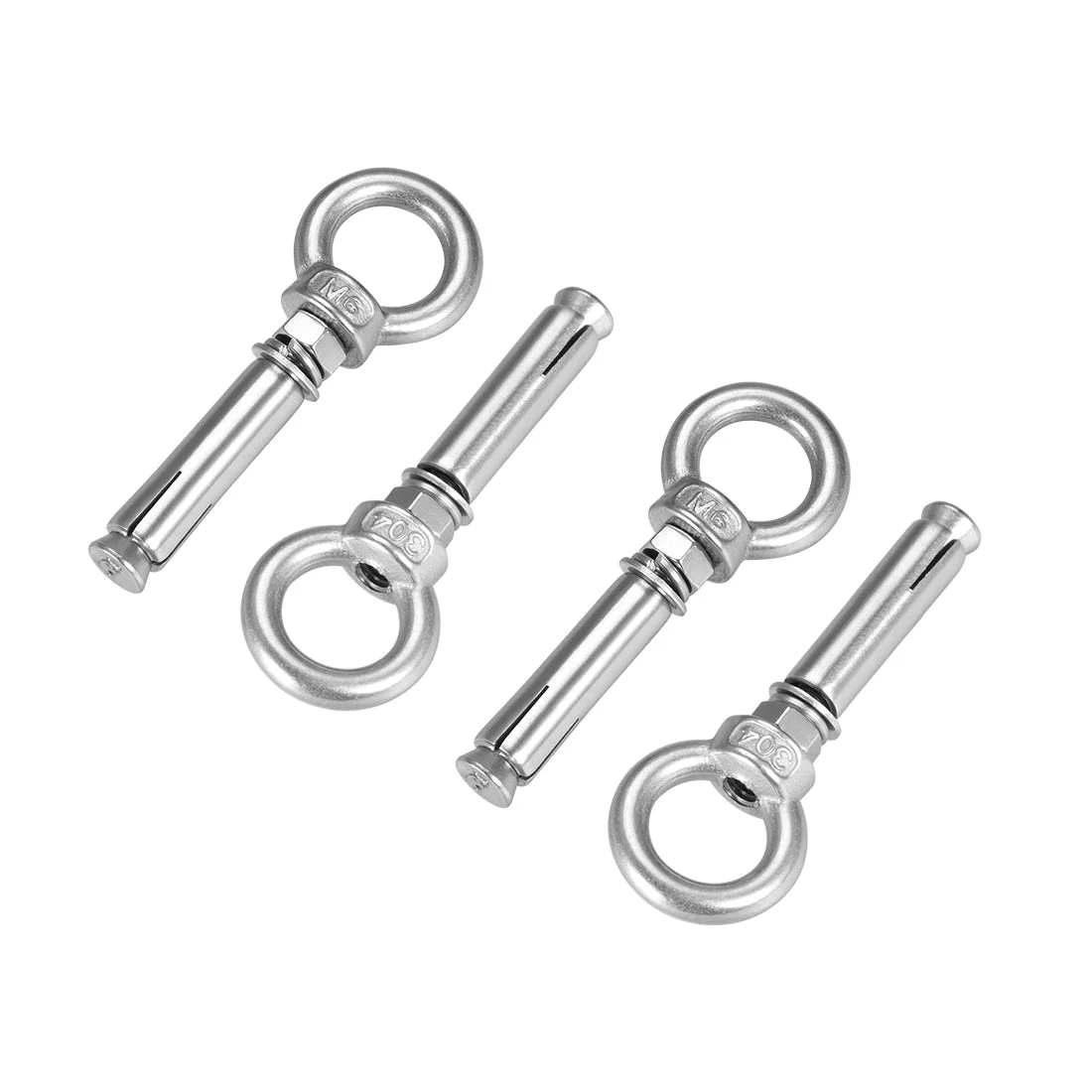

- Main Size. Standard M6 expansion bolts with 75mm length, and the ring Inner Diameter is 16mm.
- Materials. Made of premium 304 stainless steel, provides a rust protection and precise size.
- Installation. Suggested a 10mm Dia. hole for drilling, and tight the anchor bolt with a wrench after putting the screw. The bolt transfers forces to the sleeve, with the expansion of sleeve, a solid connection has been built between a concrete wall and the wedge anchor nut.
- Application. Fit the concrete wall or masonry, for hanging or lefting the super heavy things like a big shelf. It’s durable and reliable.
- Details. The eye type is drop forged eye, such eye bolts are designed to attach a securing eye to a structure and then tie to ropers or cables.
Screw Size: M6
Overall Length: 75mm
Eye Nut Height: 30mm
Inner diameter of the ring: 16mm
Sleeve Inner Diameter: 6mm
Sleeve Length: 35mm
Suggested Hole Size: 10mm Dia.
Total Weight: 144g
Materials: 304 Stainless Steel
Application: Concrete and masonry
Package Content:
4 x pcs M6 x 50 Expansion Eye Bolt
