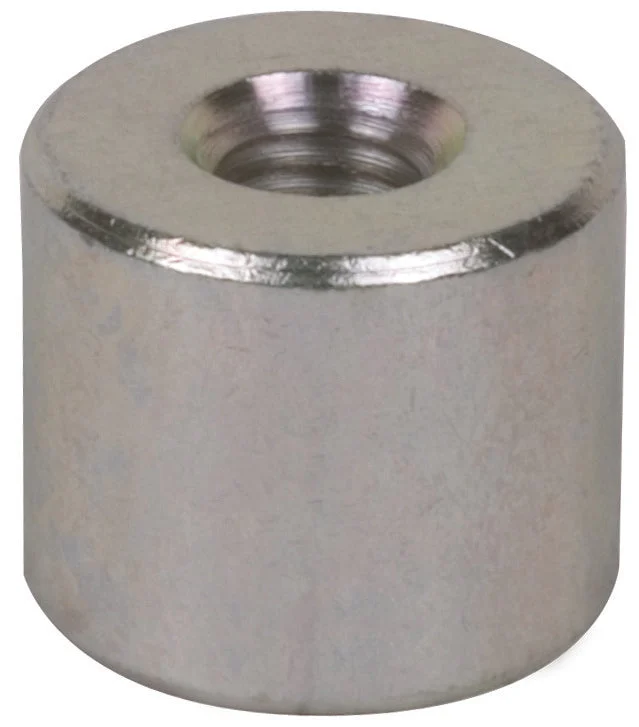

M12 Female Thread Welding-Type Connector Kit St/GalZn – 336020

The item is a weld-on connector featuring a female thread, which serves as a connection point to the earthing system as per EN/IEC 61230 (DIN VDE 0683-100) standards. The connector exhibits high mechanical strength due to its non-cutting shaped thread. It is designed for direct welding applications and can handle a maximum short circuit current of 42kA. Notably, the connector’s structure is straight and it has an attachment point diameter of 30mm for earthing and short-circuiting.

Specifications

Max. short circuit current (kA) : 42
Construction type : Straight
Mounting method : Weldable
Connection of the earthing and short circuit device : Internal thread
Diameter fixed point (mm) : 30
Suitable for round conductors : No
