About this item

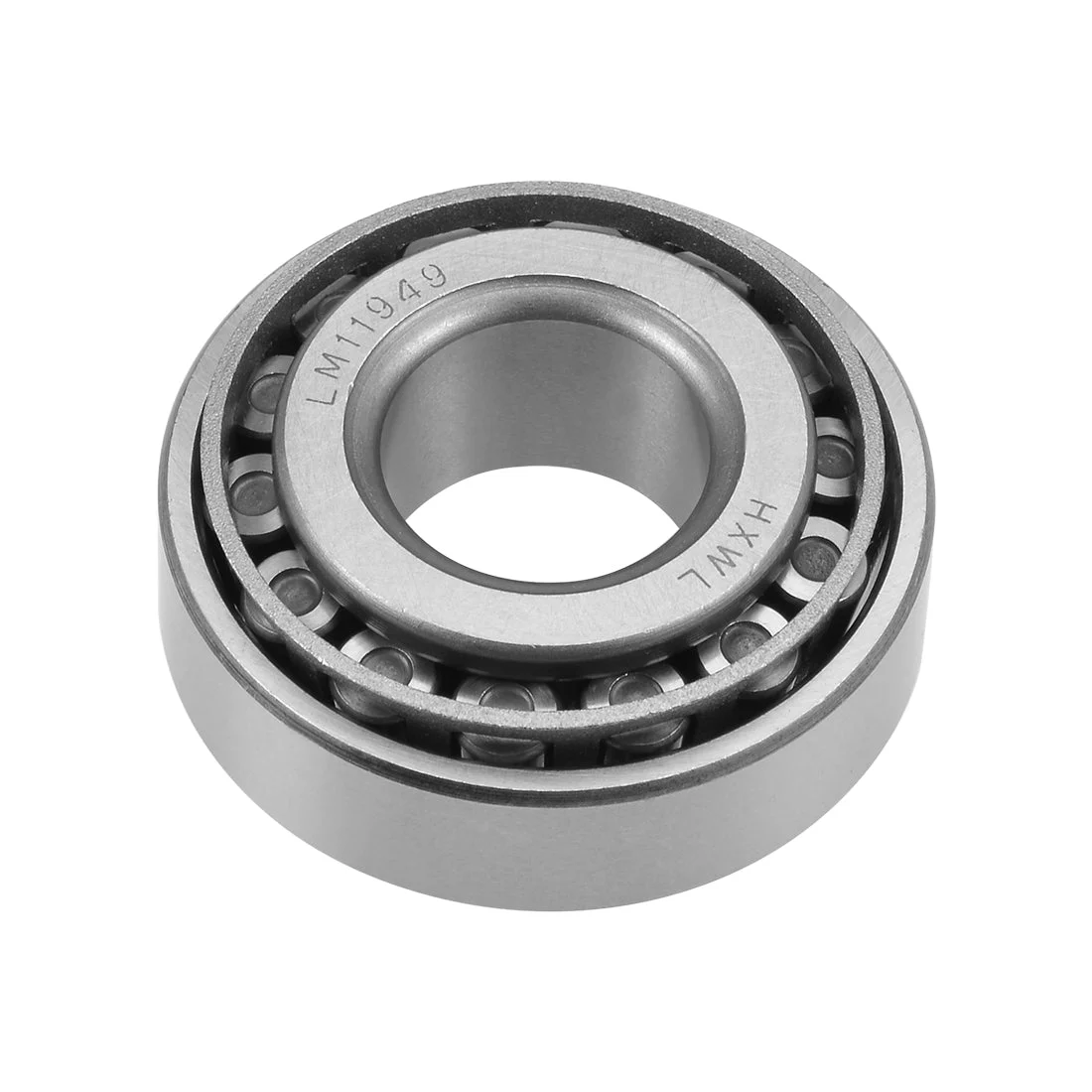

- Model: LM11949/10 (Bore: 19.05mm / 0.75″, Outer Diameter: 45.237mm / 1.781″, Width: 16.637mm / 0.655″)
- Single row tapered roller bearings must be used either with a second bearing or as a matched pair
- Components are separable and interchangeable that easy for maintenance
- Features low friction and low noise that provide operational reliability
- Static Load Rating of 32kN and Dynamic Load Rating of 39.1kN
Description:
- Single Row Tapered Roller Bearings are designed to accommodate combined loads.
- These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
- The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
- The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
- This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.
Specification:
Cone Model: LM11949
Cup Model: LM11910
Material: Chrome Steel
Bore Diameter: 19.05mm / 0.75″
Outside Diameter: 45.237mm / 1.781″
Total Thickness (T): 16.637mm / 0.655″
Dynamic Load Rating (Cr): 39100N
Static Load Rating (Cor): 32000N
