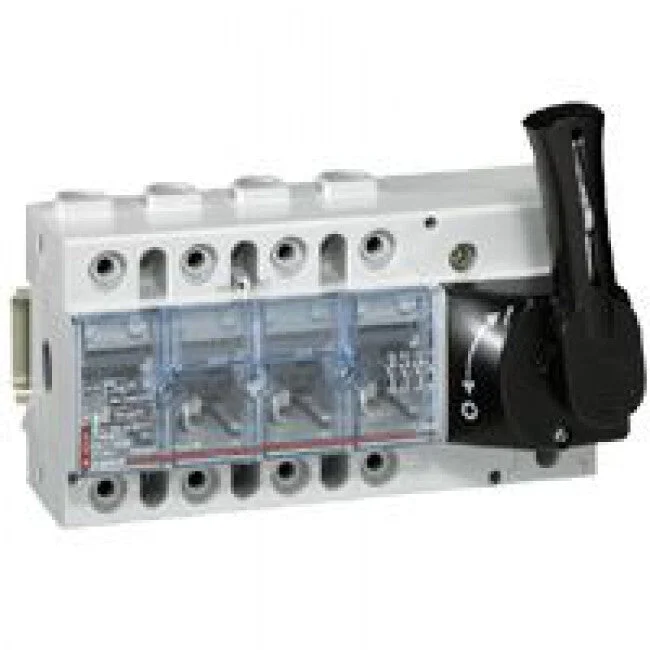

Legrand Vistop switch-disconnector, main switch design, working switch design, max rated operating voltage Ue at A 690V, operating voltage (measurement voltage) 690V, rated continuous current Iu 160A, rated continuous current, AC-21, 400 V 160A, rated power at AC-3, 400 V 160kW.
Specifications
Version as main switch : Yes
Version as maintenance-/service switch : Yes
Version as safety switch : No
Version as emergency stop installation : No
Version as reversing switch : No
Max. rated operation voltage Ue AC (V) : 690
Rated operating voltage (V) : 690 V to 690 V
Rated permanent current Iu (A) : 160
Rated permanent current at AC-21, 400 V (A) : 160
Rated operation power at AC-3, 400 V (kW) : 160
Rated short-time withstand current lcw (kA) : 3.5
Rated operation power at AC-23, 400 V (kW) : 88
Switching power at 400 V (kW) : 88
Conditioned rated short-circuit current Iq (kA) : 12
Number of poles : 4
Number of auxiliary contacts as normally closed contact : 0
Number of auxiliary contacts as normally open contact : 0
Number of auxiliary contacts as change-over contact : 0
Motor drive optional : No
Motor drive integrated : No
Voltage release optional : No
Device construction : Built-in device fixed built-in technique
Suitable for floor mounting : No
Suitable for front mounting 4-hole : Yes
Suitable for front mounting center : Yes
Suitable for distribution board installation : Yes
Suitable for intermediate mounting : No
Color control element : Black
Type of control element : Toggle
Interlockable : Yes
Type of electrical connection of main circuit : Screw connection
Degree of protection (IP), front side : IP2X
