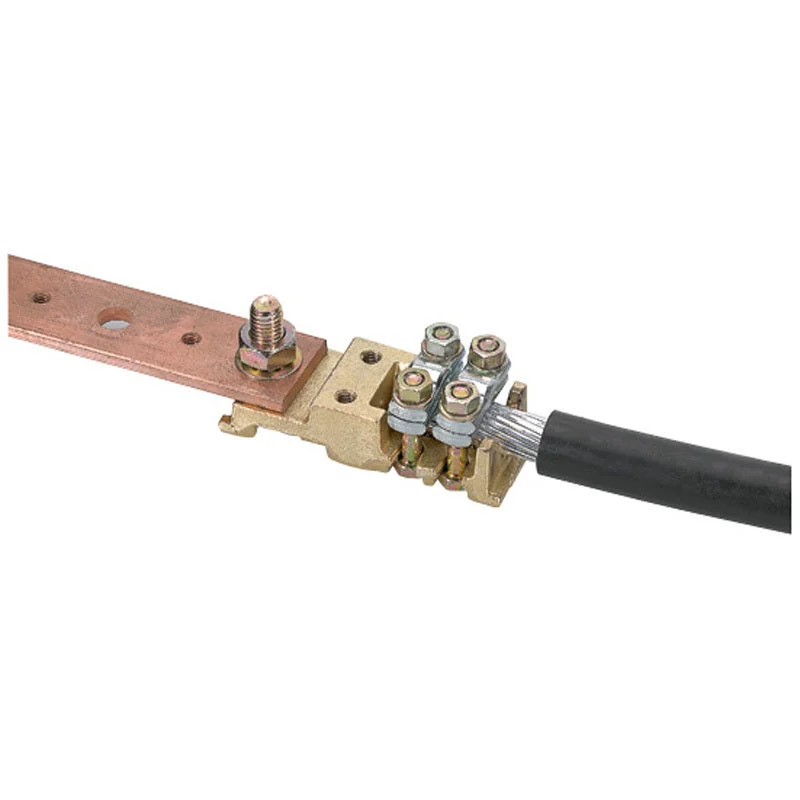

The Legrand Viking terminal block is a high-quality component designed for efficient electrical distribution. It is a separation terminal block, implying that it is used to separate different types of circuits within a system. Manufactured by Legrand, a globally recognized brand, this terminal block stands out for its robustness, durability, and its ability to enhance the safety and organization of your electrical wiring systems. It’s designed for efficient wire management in a variety of industrial and commercial applications.
Specifications
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 35 mm² to 150 mm²
Connectable conductor cross section fine-strand with cable end sleeve (mm²) : -35 mm² to 95 mm²
Connectable conductor cross section solid-core (mm²) : 35 mm² to 95 mm²
Connectable conductor cross section multi-wired (mm²) : 35 mm² to 95 mm²
Rated current In (A) : 315
Rated voltage (V) : 1000
Type of electrical connection 1 : Bolt connection
Type of electrical connection 2 : Screw connection
Number of levels : 1
Number of clamp positions per level : 1
Internally connected stages : No
Mounting method : DIN rail (top hat rail) 35 mm
Material insulation body : Thermoplastic
Inflammability class of insulation material according to with UL94 : V2
Operating temperature (°C) : -5 °C to 40 °C
Width (mm) : 42
Height (mm) : 89.5
Depth (mm) : 296
Closing plate required : No
Color : Grey
Type of slitting : Swivelling
With integrated test socket : Yes
