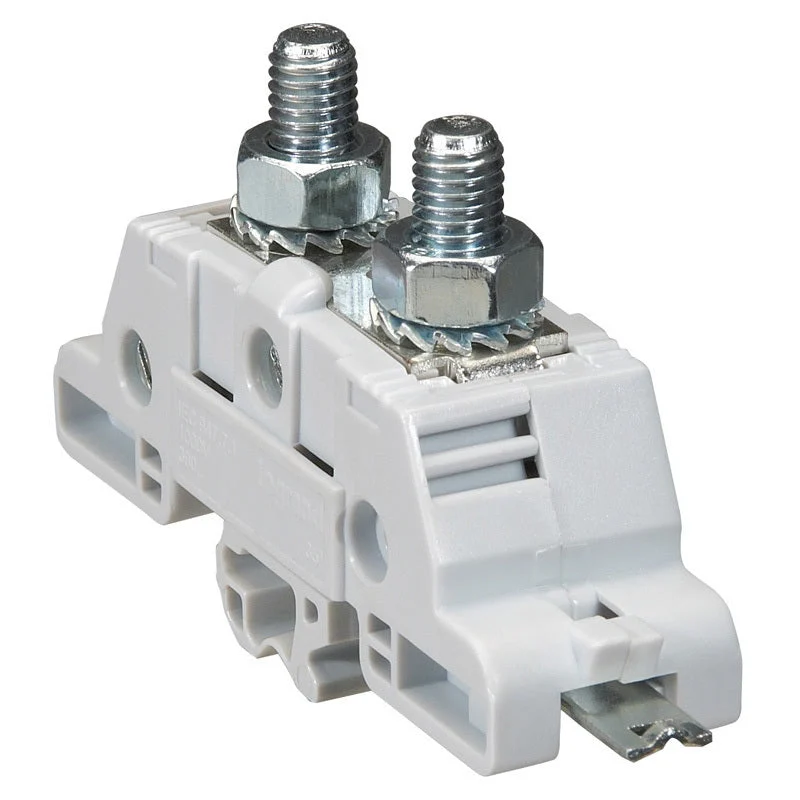

The Legrand Viking Separation Terminal Block is a high-quality technical product designed to streamline electrical distribution in various systems. Being part of the renowned Viking series by Legrand, this separation terminal block guarantees effective connection and distribution of electrical circuits. It aids in efficient power management and ensures safe and secure electric connections. It’s an ideal choice for professionals working in industrial and technical environments where distribution of power is crucial.
Specifications
Connectable conductor cross section fine-strand without cable end sleeve (mm²) : 35 mm² to 35 mm²
Connectable conductor cross section solid-core (mm²) : 35 mm² to 35 mm²
Rated current In (A) : 125
Rated voltage (V) : 1000
Type of electrical connection 1 : Bolt connection
Type of electrical connection 2 : Bolt connection
Number of levels : 1
Number of clamp positions per level : 1
Internally connected stages : No
Mounting method : G-rail
Material insulation body : Thermoplastic
Inflammability class of insulation material according to with UL94 : V2
Operating temperature (°C) : -5 °C to 40 °C
Width (mm) : 26
Height (mm) : 56
Depth (mm) : 84
Closing plate required : No
Color : Grey
