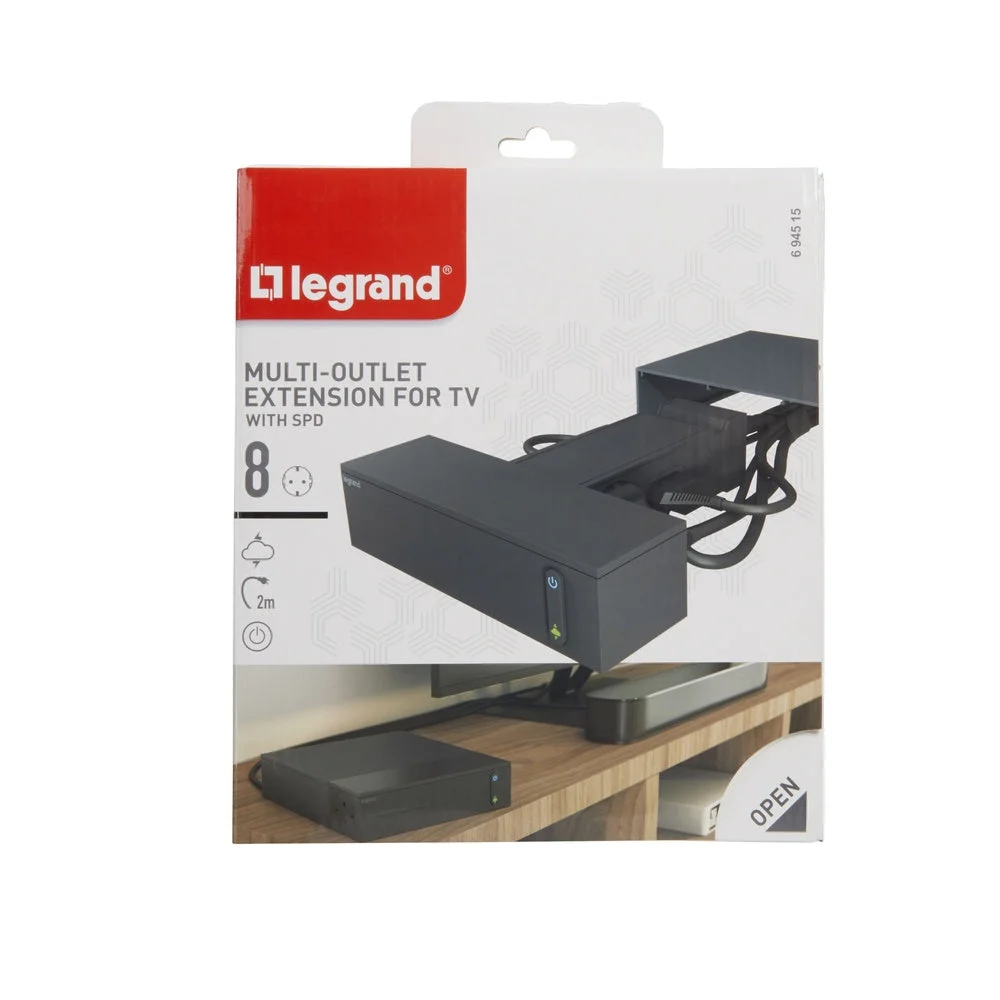

Legrand TV Corner Outlet 4X2P+A With 4X2P 2.5A Black (European Socket) – 694515

The Legrand socket combination is a versatile product featuring a 2-meter cord, 4 earth contact sockets, and surge protection. It has a convenient on/off switch and a protective cover, offering an IP20 degree of protection. Its plug position is angled at a 45° degree and the cross-section of the wire measures 1.5mm². The box itself has a matte black finish and a rectangular shape, and the sockets are turned for ease of use. Additionally, the TV Corner socket combines 4x2P+A and 4x2P 2.5A in black.

Specifications

Housing shape : Rectangular
Number of socket outlets with protective contact (SCHUKO) : 4
Number of Euro socket outlets : 8
Number of CEE socket outlets : 0
Number of socket outlets with earth pin : 0
Number of cold device socket outlets : 0
Number of socket outlets type Bipasso (Italy) : 0
Number of socket outlets Type P11 (Italy) : 0
Number of socket outlets Type P17 (Italy) : 0
Number of socket outlets Danish standard (earthing pin) : 0
Number of socket outlets French standard (Type E) : 0
Number of NEMA-outlets : 0
Number of socket outlets Swiss standard type 13 : 0
Number of socket outlets Swiss standard type 15 : 0
Number of socket outlets Swiss standard type 23 : 0
Number of socket outlets Swiss standard type 25 : 0
With on/off switch : Yes
Residual current circuit breaker (RCCB) : No
Number of universal multi standard sockets : 0
Mains filter : No
Number of other socket outlets : 0
Number of USB connections : 0
Over voltage protection : Yes
Nominal current (A) : 16
Core cross section (mm²) : 1.5
With cover : Yes
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Surface protection : Untreated
Surface finishing : Matt
Color : Black
RAL-number (similar) : 9017
Transparent : No
Degree of protection (IP) : IP20
Impact strength : IK04
Length of power cord (m) : 2
Rotated central insert : Yes
Angle rotated central insert : 45°
NEMA designation : None
Working temperature (°C) : -5 °C to 35 °C
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
IFTTT support available : No
