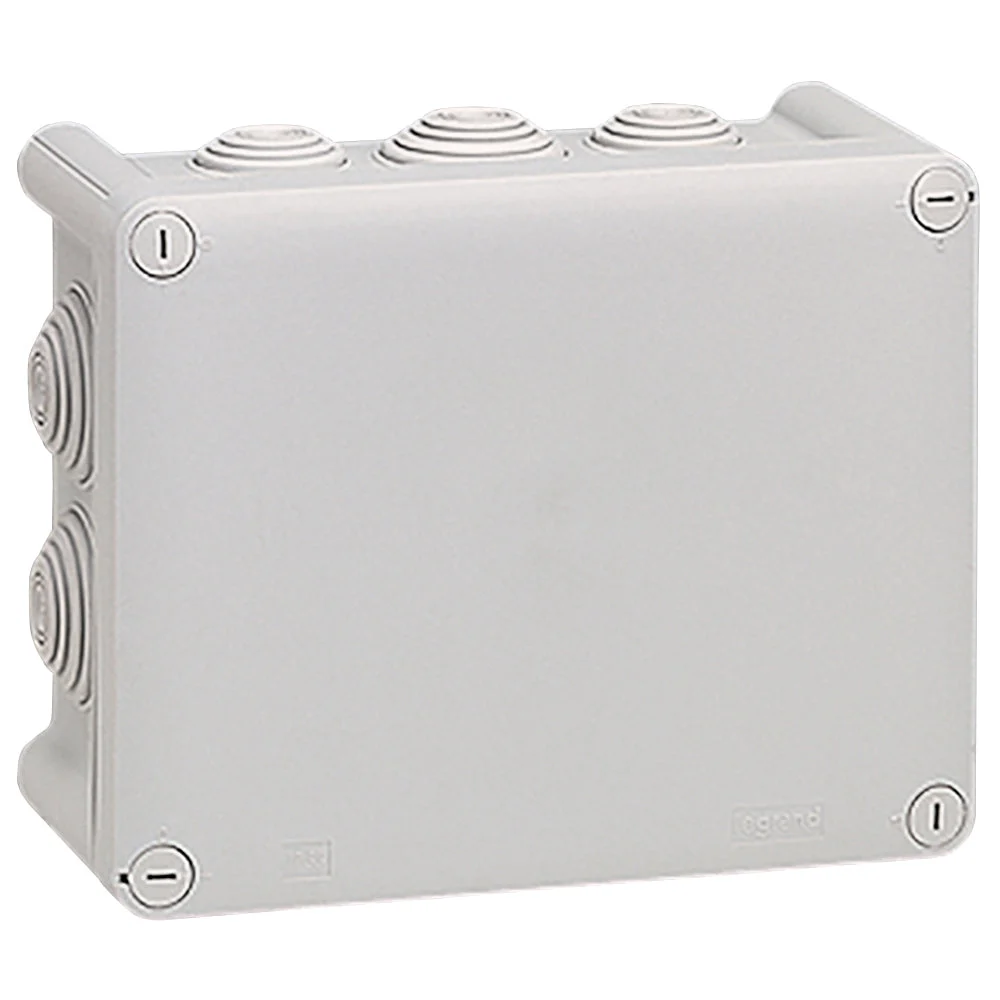

Legrand Plexo Surface mounted Box Wall/Ceiling – 092052

This cable box from Legrand’s Plexo series has 10 grommets suitable for cables and tubes from 4 – 32mm². The grommets are interchangeable. Special writing surfaces on and in the lid allow marking of circuits. The cover with quarter-turn closure is connected to the box by a plastic wire, making it unlosable. This Plexo cable box measures 200x160x94mm with IP55 protection rating and IK07 impact resistance. Furthermore, the Plexo junction box can be installed internally with 2 or 4 screws max.

Specifications

Max. conductor cross section (mm²) : 32
Equipped with : None
Shape : Rectangular
Mounting method : Universal
Mounting in the soil : No
Mounting under water : No
For tube diameter : 32 mm
Inlet from the rear : No
Length (mm) : 200
Width (mm) : 160
Depth (mm) : 94
Tackable : No
Number of inlets : 10
Type of housing feed-through : Trimmable step membrane
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Grey
Degree of protection (IP) : IP55
Cover model : Other
Transparent cover : No
Cover attachment : Bayonet latch
Castable : No
With casting compound : No
Sealable : Yes
Rated insulation voltage Ui (V) : 500
Circuit integrity : None
With screening : No
Weatherproof : Yes
Working temperature (°C) : -25 °C to 40 °C
Explosion-tested version : No
For Ex-zone gas : None
For Ex-Zone dust : None
