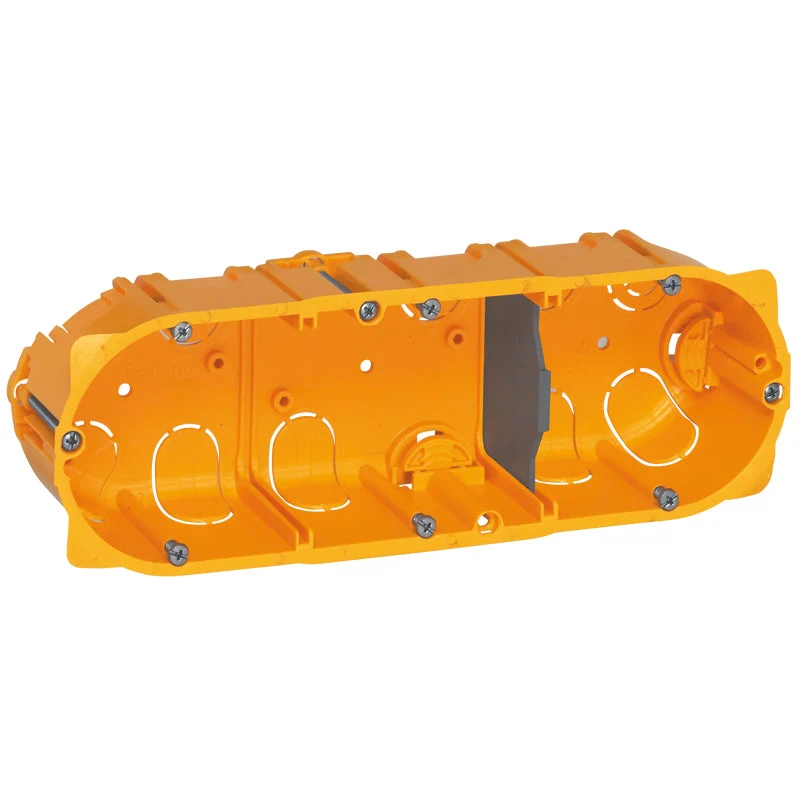

The Legrand Mosaic in-wall box for walls/ceilings is a three-fold, oval, plastic device box with a diameter of 67mm and dimensions (length x width x depth) of 213×72.8x53mm. Specifically designed for hollow walls, its built form enables it to house eight sockets, with an internal depth of 50mm. The box, equipped with screws, can be secured by either screwing or spreading switchgear. This rectangular box, which comes in a shade of yellow, allows a maximum of three sockets, each with a width of two modules, thereby accommodating up to six modules in total. The housing feed is handled via break openings and the box allows a maximum of ten entries.
Legrand company is part of the international Legrand Group, with the Dutch branch primarily specializing in the residential and commercial construction market, machine and panel construction, and industry. The range of systems within these sectors is also very large. This includes switchgear and distribution equipment, cable management systems, door communication, and switchgear. What applies to each of these systems is that they work well together and are safe and easy to install on their own. The Mosaic switch gear is characterized by safe, simple, and fast switching. This speed and simplicity are caused because this single switch gear can be used on all floor boxes, wall ducts, energy columns, and desk units of the brand. Moreover, all switch gears are equipped with child safety locks, and the modular design gives you maximum installation freedom.
Specifications
Mounting method : Hollow wall
Shape : Oval
Construction type : Device connection box (round/square)
Model : 3-fold
Provided with revolving ring : No
Connectable : No
Equipped with : None
Diameter size (mm) : 67
Length (mm) : 213
Width (mm) : 72.8
Depth (mm) : 53 mm to 53 mm
Internal depth (mm) : 50
For number of electric fittings : 8
Mounting switching equipment : Screw or spread out
With screws : Yes
Housing feed-through by break-out opening : Yes
Housing feed-through by seal membrane : No
Housing feed-through by nozzle : No
Housing feed-through by step membrane : No
For tube diameter : Other
Suitable for cable diameter (mm) : 16 mm to 25 mm
Pipe locking : No
Pipe locking optional : No
Inlet from the rear : Yes
Number of inlets : 10
Number of included spouts : 0
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Yellow
Degree of protection (IP) : IP20
Cover model : None
Cover attachment : Other
Sealable : No
Circuit integrity : None
With screening : No
Air tight : No
Max. conductor cross section (mm²) : 0
Number of poles of the clamp : 0
Clamp position fixed : No
Luminaire hook mounting : No
Nozzle : None
With nail lugs : No
Special application : None
