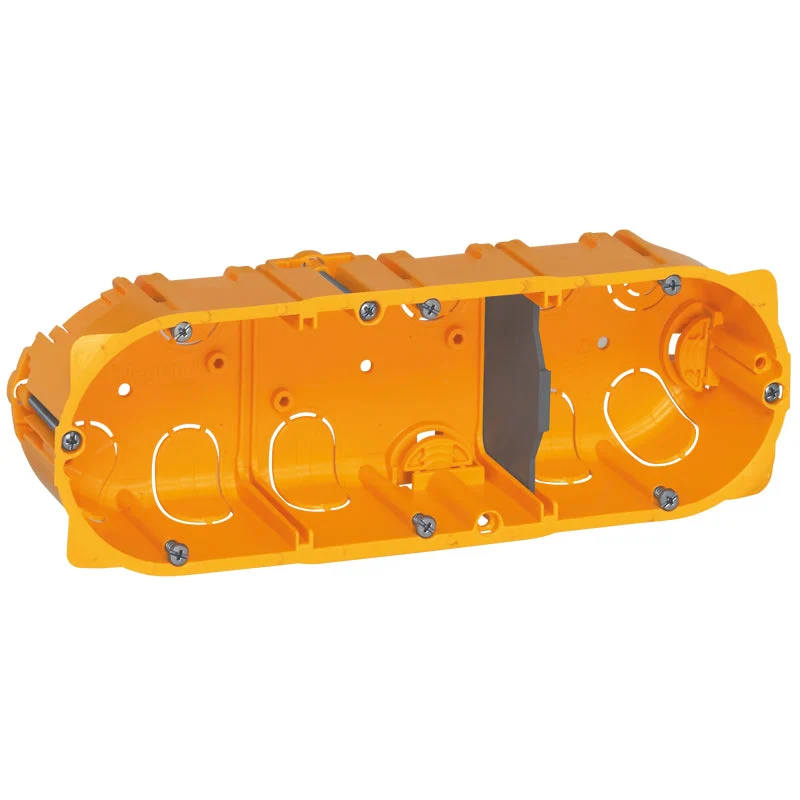

The Legrand Mosaic is a 3-way plastic recessed box for wall or ceiling installation, with an oval shape. It measures 213×72.8x43mm (LxWxD), has a diameter of 67mm and is suitable for hollow walls. The box’s internal depth is 40mm and it can accommodate up to 8 installation sockets. It can be fixed using screws or spreaders. The package includes screws for installation.
Specifications
Mounting method : Hollow wall
Shape : Oval
Construction type : Device connection box (round/square)
Model : 3-fold
Provided with revolving ring : No
Connectable : No
Equipped with : None
Diameter size (mm) : 67
Length (mm) : 213
Width (mm) : 72.8
Depth (mm) : 43 mm to 43 mm
Internal depth (mm) : 40
For number of electric fittings : 8
Mounting switching equipment : Screw or spread out
With screws : Yes
Housing feed-through by break-out opening : Yes
Housing feed-through by seal membrane : No
Housing feed-through by nozzle : No
Housing feed-through by step membrane : No
For tube diameter : Other
Suitable for cable diameter (mm) : 16 mm to 25 mm
Pipe locking : No
Pipe locking optional : No
Inlet from the rear : Yes
Number of inlets : 10
Number of included spouts : 0
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Yellow
Degree of protection (IP) : IP20
Cover model : None
Cover attachment : Other
Sealable : No
Circuit integrity : None
With screening : No
Air tight : No
Clamp position fixed : No
Luminaire hook mounting : No
Nozzle : None
With nail lugs : No
Special application : None
