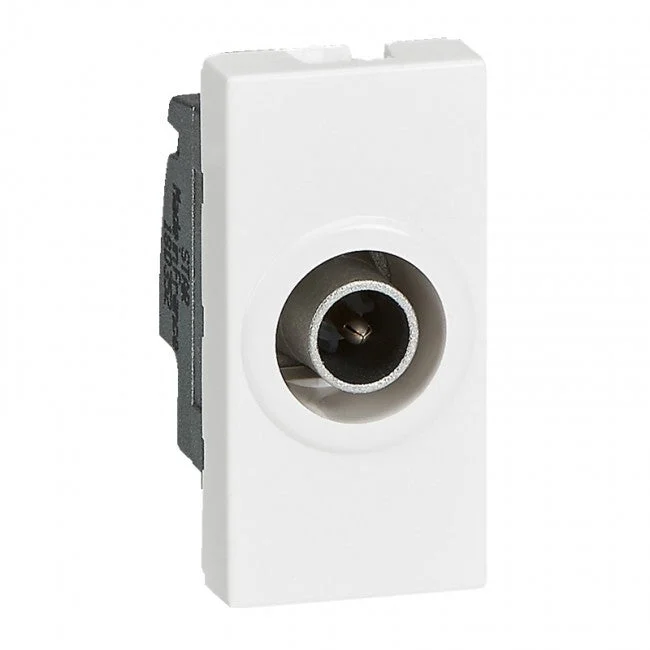

Legrand Mosaic Antennasocket – 078793

Legrand Mosaic antenna terminal box, module carrier, frequency 4 – 2400MHz, connection attenuation at 2150 MHz 1.5dB, connection attenuation at 860 MHz 1dB, 1 modules (for modular sys, 1 outputs, degree of protection (IP) IP21, transmission attenuation at 860 MHz 1.5dB, thermoplastic quality class.

Specifications

Model : End socket
Mounting method : Module frame
Number of modules (module system) : 1
Cover : Central cover plate
Tap loss at 860 MHz (dB) : 1
Tap loss at 2150 MHz (dB) : 1.5
Number of outlets : 1
Suitable for cable modem : No
Through loss at 860 MHz (dB) : 1.5
Suitable for remote power supply : Yes
Frequency (MHz) : 4 MHz to 2400 MHz
Type of fastening : Snap mounting (engagement)
Color : White
RAL-number (similar) : 9003
Surface protection : Untreated
Surface finishing : Glossy
Material : Plastic
Material quality : Thermoplastic
Halogen free : Yes
Anti-bacterial treatment : No
Degree of protection (IP) : IP21
Impact strength : IK03
Width of device (mm) : 22.5
Height of device (mm) : 45
Min. depth of built-in installation box (mm) : 23.5
