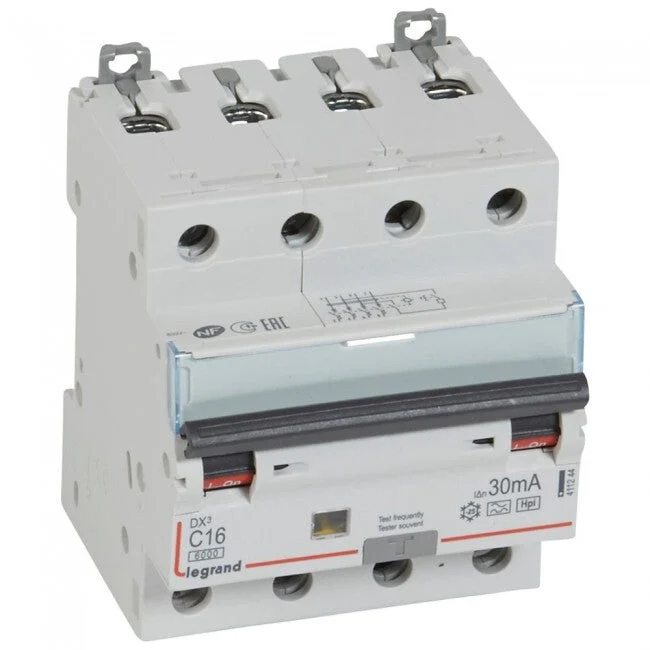

Legrand LEXIC Circuit Breaker – 411244

This earth leakage circuit breaker from Legrand’s Lexic series contains a total of 4 poles, all of which are protected. Furthermore, the earth leakage circuit breaker can be connected with both pin and fork connection rails and equipped with DX auxiliary contacts. This Type F (30mA) prevents unwanted tripping in disturbed environments and detects high-frequency fault currents. In addition, the ground fault circuit breaker can use the test button to verify the proper functioning of the device. The ground fault circuit breaker further has a rated voltage of 400V, a rated current of 16A and a short circuit breaking capacity of 10kA.

Specifications

Number of poles (total) : 4
Number of protected poles : 4
Rated voltage (V) : 400
Rated current (A) : 16
Rated fault current (A) : 0.03
Leakage current type : F
Current limiting class : 3
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 10
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Surge current capacity (kA) : 3
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : C
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Pollution degree : 2
Width in number of modular spacings : 4
Built-in depth (mm) : 44
Flush-mounted installation : Yes
Anti-nuisance tripping version : Yes
Degree of protection (IP) : IP20
