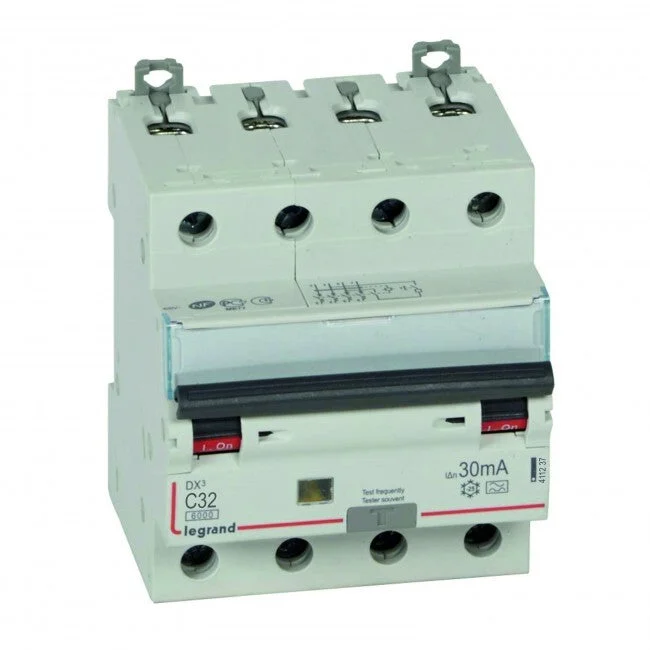

Legrand LEXIC Circuit Breaker – 411237

Legrand LEXIC DX3 earth leakage circuit breaker 4, trip characteristic C, leakage current type A, nom. (measuring) current 32A, co-switching neutral, rated fault current 0.03A, rated breaking capacity EN 60898 6kA, 4 poles (total), width in module units 4, 4 protected poles, degree of protection (IP) IP20.

Specifications

Number of poles (total) : 4
Number of protected poles : 4
Rated voltage (V) : 400
Rated current (A) : 32
Rated fault current (A) : 0.03
Leakage current type : A
Current limiting class : 1
Rated short-circuit breaking capacity according to EN 61009 (kA) : 6
Rated short-circuit breaking capacity according to IEC 60947-2 (kA) : 10
Rated short-circuit breaking capacity Icn according to EN 61009-1 (kA) : 6
Surge current capacity (kA) : 0.25
Voltage-type : AC
Frequency : 50 Hz
Release characteristic : C
Concurrently switching neutral conductor : Yes
With interlocking device : Yes
Pollution degree : 2
Width in number of modular spacings : 4
Built-in depth (mm) : 44
Flush-mounted installation : Yes
Anti-nuisance tripping version : No
Degree of protection (IP) : IP20
