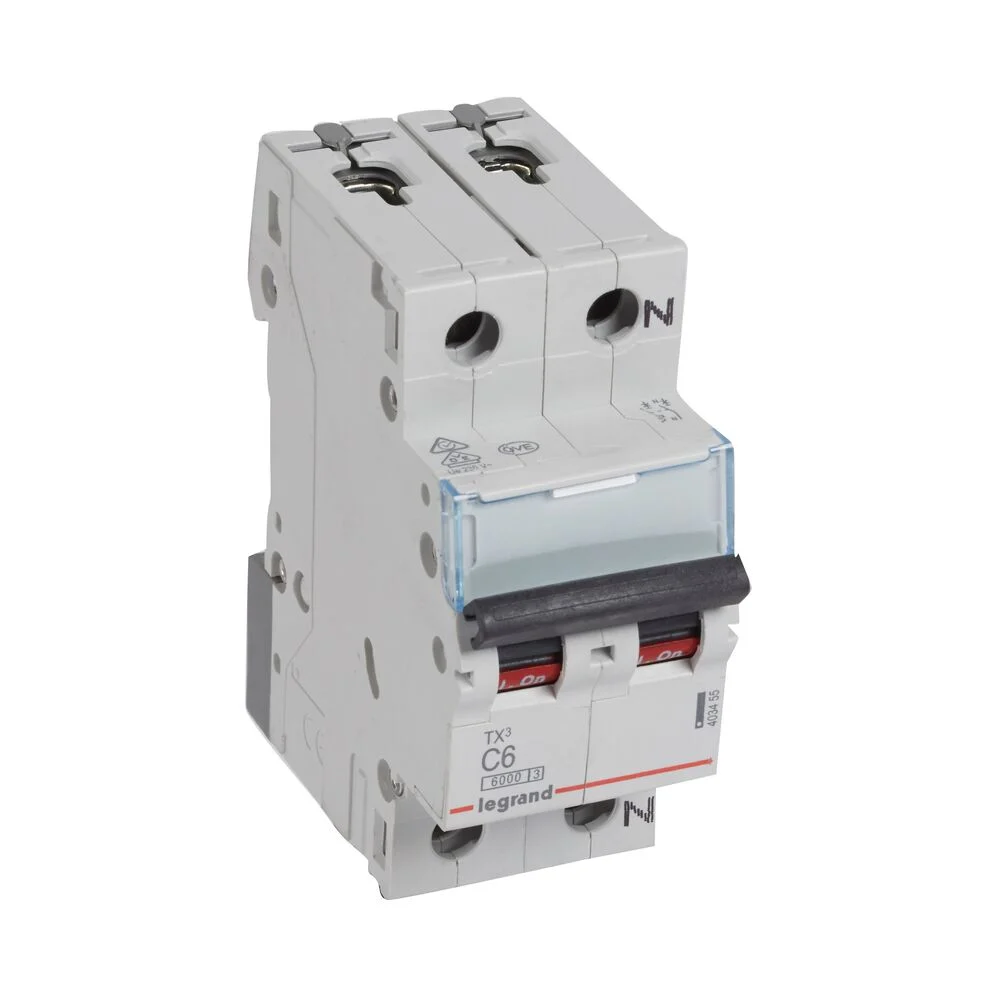

The Legrand TX3 circuit breaker can be connected with either pin or fork terminal rails. Short circuit breaking capacity according to IEC 60947-2 – 6 kA. In addition, this Legrand circuit breaker can be equipped with DX3 auxiliary contacts. The TX3 circuit breaker cannot be equipped with ground fault elements. Legrand Lexic TX3 circuit breakers are available in different variants.
Specifications
Built-in depth (mm) : 44
Release characteristic : C
Number of poles (total) : 2
Number of protected poles : 1
Rated current (A) : 6
Rated voltage (V) : 230
Rated insulation voltage Ui (V) : 500
Rated impulse withstand voltage Uimp (kV) : 4
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V (kA) : 10
Voltage-type : AC
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V (kA) : 6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V (kA) : 6
Frequency (Hz) : 50 Hz to 60 Hz
Current limiting class : 3
Flush-mounted installation : Yes
Concurrently switching neutral conductor : Yes
Pollution degree : 2
Additional equipment possible : Yes
Width in number of modular spacings : 2
Degree of protection (IP) : IP20
Explosion-proof : No
