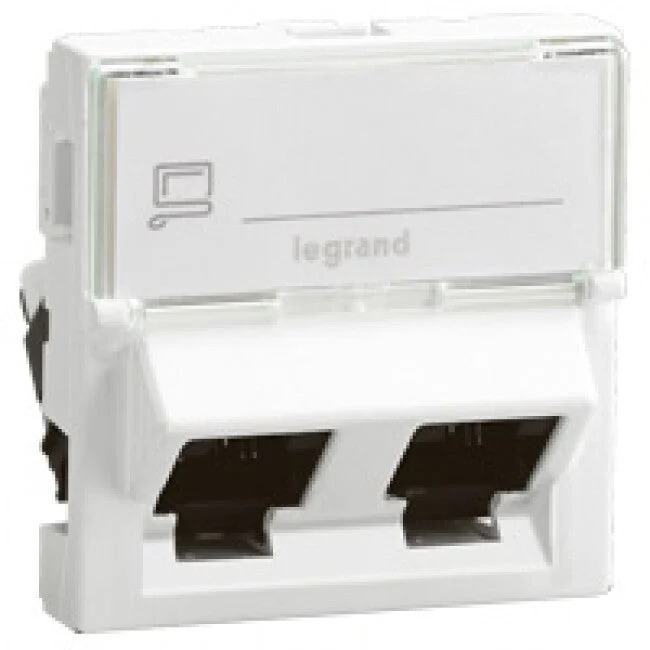

Legrand LCS² data system Mosaic data junction box twisted pair, white, category 6, connector type RJ45 8(8), wall channel mounting, protection type (IP) IP20, connection type insertion/IDC, suitable for number of connectors 2, 2 modules (for modular sys, design capable, flush mounting (stucco), connectors included.
Specifications
Surface mounting : No
Flush-mounted installation : Yes
Duct installation : Yes
Floor box/sub-floor mounted : Yes
Type of fastening : Engage (snap)
Assembly arrangement : Basic element with central cover plate
Type of connector : RJ45 8(8)
With buses/couplings : Yes
Suitable for number of connectors : 2
Category : 6
Color : White
RAL-number : 9003
Connection type : Insulation displacement connector
Shielded buses : No
Shielded housing : No
Separate earthing connection : No
With label space : Yes
Design suitable : Yes
Separate strain relief : No
Mounting method shielding connection : None
Outlet direction : Inclined
With dust cover : No
With terminal resistor : No
Degree of protection (IP) : IP20
Mechanical coding : No
Color coding : Yes
Width of device (mm) : 45
Height of device (mm) : 45
Depth of device (mm) : 40.7
Number of modules (module system) : 2
