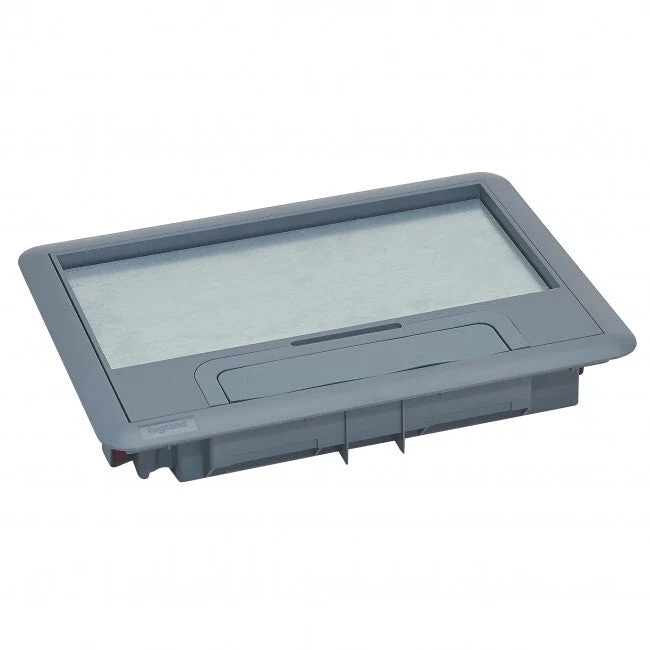

Legrand Floorsocket – 088000

Legrand floor socket, gray, design cover rectangular, 1 device cups, housing, surface protection housing, with recess floor cover, depth floor cover recess 8mm, protective frame floor cover, RAL number 7031, suitable for hollow floor.

Specifications

Cover model : Rectangular
Number of device cups : 1
Material : Other
Surface protection housing : Other
With opening carpeting : Yes
Depth of flooring recess (mm) : 8
Protective frame carpeting : Yes
Color : Grey
RAL-number : 7031
Suitable for sub-floor duct : No
Suitable for hollow floor : Yes
Suitable for double floor built-in : Yes
Suitable for wet cleaning : Yes
Width outside dimension (mm) : 203
Length external dimension (mm) : 286
Outer-diameter (mm) : 0
Length built-in dimension (mm) : 264
Width built-in dimension (mm) : 181
Built-in diameter (mm) : 0
Min. built-in depth (mm) : 41
