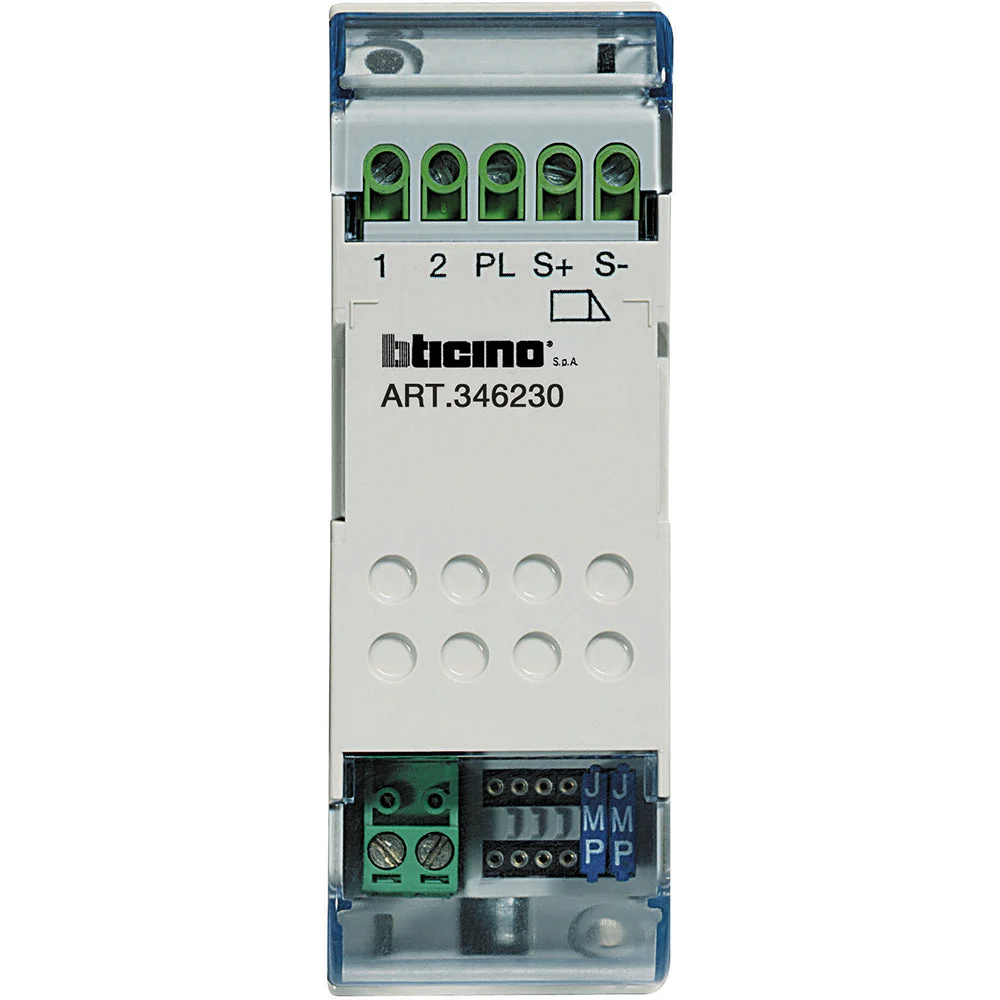

Legrand Bticino Switch Actuator Bus System – BT346230

Original price was: $183.70.Current price is: $45.93.

SKU: E2CM4 Category: Tag:

Legrand Bticino Sfera switching actuator bus system, DRA (DIN-rail adapter), C-load, max. Number of switching outputs 1, other bus systems other, 1 digital inputs, operating voltage (measurement voltage) 18 – 27V, degree of protection (IP) IP20, width in module units 2, bus connection incl.

Specifications

Bus system KNX : No
Bus system KNX radio : No
Bus system radio frequent : Yes
Bus system LON : No
Bus system Powernet : No
Other bus systems : Other
Mounting method : DRA (DIN-rail adapter)
Width in number of modular spacings : 2
Local operation/hand operation : No
With LED indication : No
Number of digital inputs : 1
Max. switching power (W) : 144
Suitable for C-load : Yes
Max. number of switching contacts : 1
Rated current (A) : 6
Rated operating voltage (V) : 18 V to 27 V
Different phases connectable : No
With bus connection : Yes
Modular expandability : No
Degree of protection (IP) : IP20
