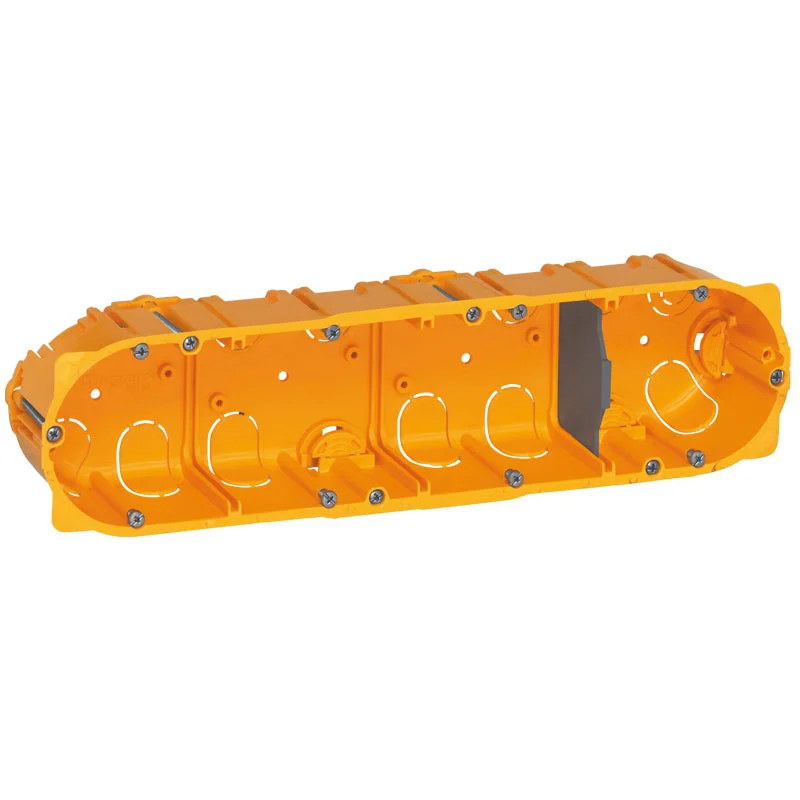

Legrand Batibox Hollow Wall Box 40mm 10 Modules Mosaic – 080044

The Legrand Batibox is a 4-way flush mount box for walls or ceilings. It’s made of plastic, with a diameter of 67mm and dimensions of 284×72.8x43mm. Specially designed for hollow walls, it has an oval shape. The construction form of the box is designed to house up to 10 socket inserts. It has an internal depth of 40mm. The switch material can be affixed either by screwing or spreading. The box comes with screws for easier installation.

Specifications

Mounting method : Hollow wall
Shape : Oval
Construction type : Device connection box (round/square)
Model : 4-fold
Provided with revolving ring : No
Connectable : No
Equipped with : None
Diameter size (mm) : 67
Length (mm) : 284
Width (mm) : 72.8
Depth (mm) : 43 mm to 43 mm
Internal depth (mm) : 40
For number of electric fittings : 10
Mounting switching equipment : Screw or spread out
With screws : Yes
Housing feed-through by break-out opening : Yes
Housing feed-through by seal membrane : No
Housing feed-through by nozzle : No
Housing feed-through by step membrane : No
For tube diameter : Other
Suitable for cable diameter (mm) : 16 mm to 25 mm
Pipe locking : No
Pipe locking optional : No
Inlet from the rear : Yes
Number of inlets : 12
Number of included spouts : 0
Material : Plastic
Halogen free : Yes
Surface protection : Untreated
Color : Yellow
Degree of protection (IP) : IP20
Cover model : None
Cover attachment : Other
Sealable : No
Circuit integrity : None
With screening : No
Air tight : No
Max. conductor cross section (mm²) : 0
Number of poles of the clamp : 0
Clamp position fixed : No
Luminaire hook mounting : No
Nozzle : None
With nail lugs : No
Special application : None
