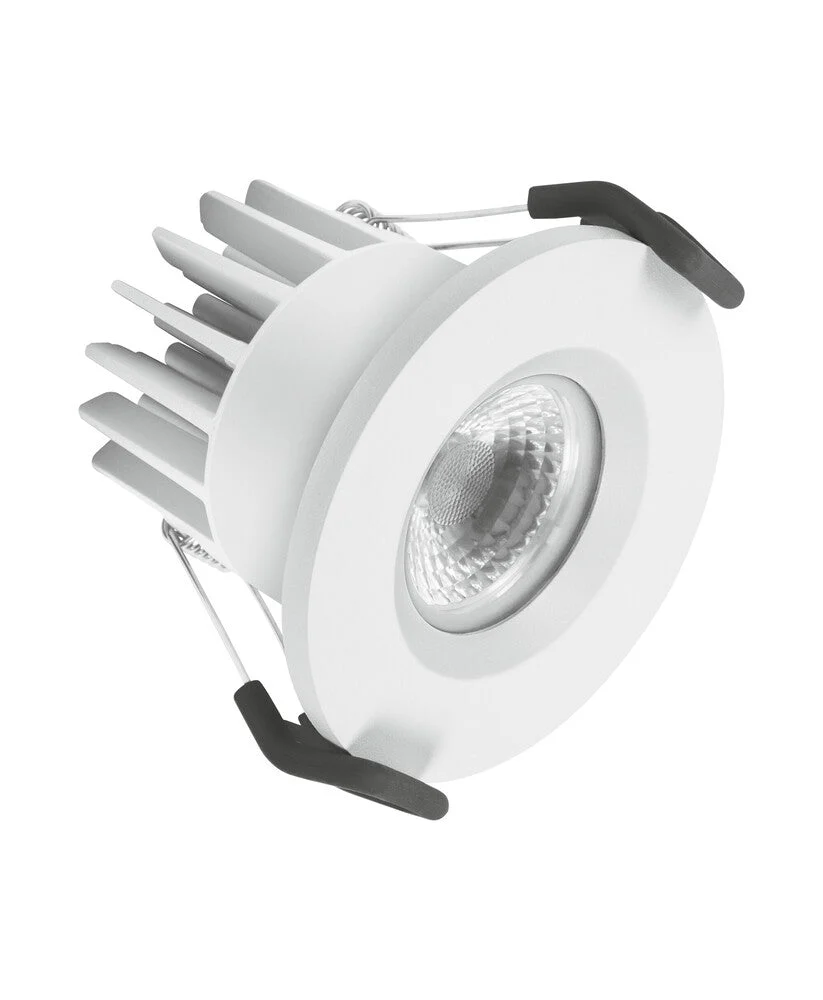

Ledvance Spot Downlight/Spotlight/Floodlight – 4058075127333

Recessed mounted spotlight, round shape, fire-resistant. Product features include fire-resistance up to 90 minutes, tested in accordance with EN 1365-2:2014 ‘fire resistance tests for loadbearing elements including floors and roofs’. It is suitable for outdoor use and fire-resistant up to 90 minutes, compliant with BS476-20:1987 and BS476-21:1987 standards.

The spotlight is compatible with standard ceiling cutouts of 68 mm. It maintains initial color consistency of ≤ 4 SDCM, and offers a type of protection, on the front side with an IP65 rating.

The product benefits include:

• High luminous efficacy
• A design matching the LEDVANCE DOWNLIGHT luminaire family
• Energy savings of up to 90 % compared to halogen lamp spotlights
• Functional and minimalistic design
• Easy installation with fast connection

It includes an external driver for extended flexibility, is designed for extra IP protection, and comes with a 5-year guarantee. Applicable in areas such as replacing halogen lamp spotlights in hotel rooms, bars, restaurants, bathrooms, for accent lighting, galleries, museums, general illumination, and outdoor use.

Specifications

Suitable for surface mounting : Yes
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 0
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : White
Material cover : Plastic, structured
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 30 mA to 30 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : None
Light distributor : Focal lens
Light sharing : Symmetric
Beam angle : Medium beam 21-40°
Light outlet : Direct
Energy efficiency class : A++
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Total harmonic distortion : 15
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 40000
Constant light output (CLO) : No
Degree of protection (IP) : IP65
Impact strength : IK06
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 45 °C
Suitable for lamp power (W) : 7 W to 7 W
Max. system power (W) : 7
Colour of light : White
Colour temperature (K) : 3000 K to 3000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 530 lm to 530 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 530
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Width (mm) : 90
Height/depth (mm) : 90
Length (mm) : 68
Outer-diameter (mm) : 90
Built-in height/depth (mm) : 90
Built-in diameter (mm) : 68 mm to 68 mm
Type of wiring : Ending
Number of poles : 2
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 32
Max. number of luminaires per miniature circuit breaker C16 : 40
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 75
Photobiological safety according to EN 62471 : RG0
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : Yes
Color consistency (McAdam ellipse) : SDCM4
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
