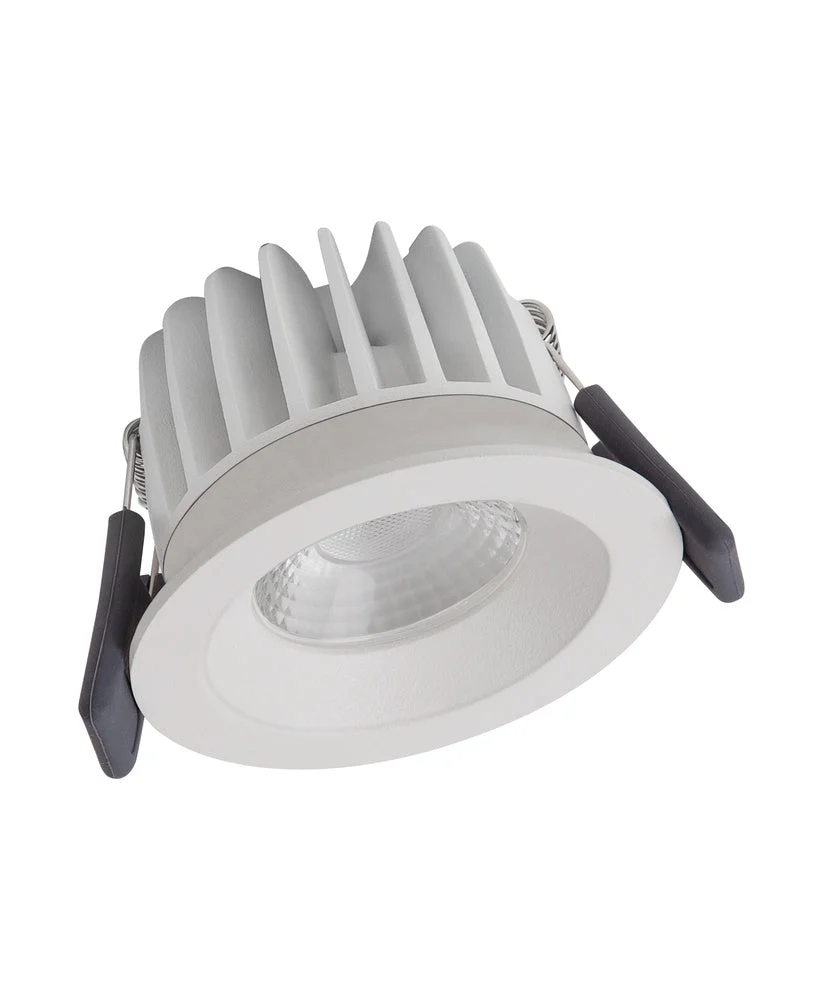

Ledvance Spot Downlight/Spotlight/Floodlight – 4058075127104

Recessed mounted spotlight, round shape, dimmable. Product features include initial color consistency equal to or less than 4 SDCM, with housing material made of aluminum and lens material of PMMA.

The product has many benefits such as:

• High luminous efficacy
• A design that matches the LEDVANCE DOWNLIGHT luminaire family
• Energy savings of up to 90% compared to halogen lamp spotlights

The design is functional and minimalistic, and it’s easy and quick to install. An external driver is included for extended flexibility, which is compatible with selected DALI drivers. The product comes with a 5-year guarantee.

This spotlight can be used as a replacement for halogen lamp spotlights. It is suitable for general illumination, hotel rooms, bars, restaurants, accent lighting, galleries, museums, and residential interiors.

Specifications

Suitable for surface mounting : Yes
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Not adjustable
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 0
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : White
Material cover : Plastic, structured
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 170 mA to 170 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : Yes
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : Yes
Dimming phase cut-on : Yes
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : No
Reflector : None
Light distributor : Focal lens
Light sharing : Symmetric
Beam angle : Medium beam 21-40°
Light outlet : Direct
Energy efficiency class : A++
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Total harmonic distortion : 20
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 40000
Constant light output (CLO) : No
Degree of protection (IP) : IP44
Impact strength : IK06
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 45 °C
Suitable for lamp power (W) : 8 W to 8 W
Max. system power (W) : 8
Colour of light : White
Colour temperature (K) : 4000 K to 4000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 670 lm to 670 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 670
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Width (mm) : 81
Height/depth (mm) : 90
Length (mm) : 68
Outer-diameter (mm) : 81
Built-in height/depth (mm) : 90
Built-in diameter (mm) : 68 mm to 68 mm
Type of wiring : Ending
Number of poles : 2
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 200
Max. number of luminaires per miniature circuit breaker C16 : 200
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 80
Photobiological safety according to EN 62471 : RG0
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : Yes
Color consistency (McAdam ellipse) : SDCM4
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
