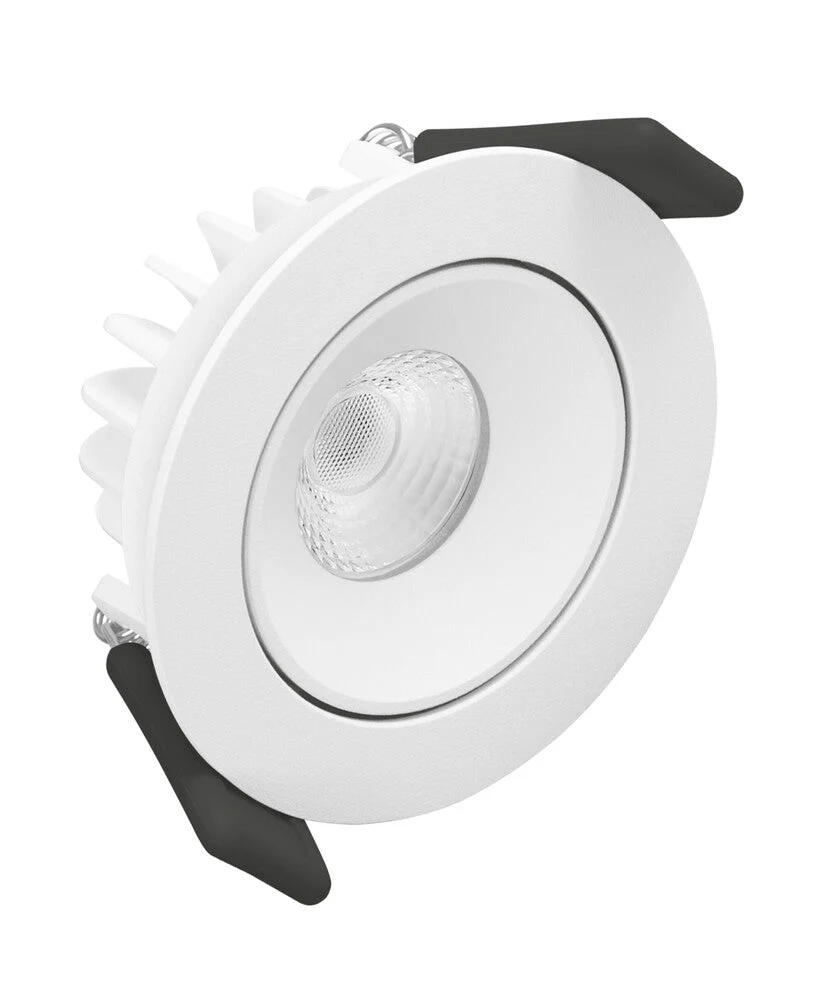

Ledvance Spot Downlight/Spotlight/Floodlight – 4058075126909

Ledvance downlight alu dn. Introducing the series of downlight luminaires with aluminum housing. These high-quality built downlights that deliver high output lumens thanks to using led technology yet being a super energy efficient. The led technology also offers very low maintenance, long-life operation (up to 30,000 hours) and easy installation. These modern design ceiling spotlights are delivered as a set with an external driver for easy installation and replacement if necessary. Ledvance alu downlights are a perfect lighting solution for both residential and commercial applications.

Specifications

Suitable for surface mounting : Yes
Suitable for built-in mounting : Yes
Suitable for wall mounting : No
Suitable for suspended mounting : No
Suitable for ceiling mounting : Yes
Suitable for traverse mounting : No
Suitable for pedestal/floor mounting : No
Suitable for light-track mounting : No
Suitable for clamp-mounting : No
Suitable for low voltage cable system : No
Adjustability : Swivelling
With movement sensor : No
With light sensor : No
Lamp type : LED not exchangeable
With light source : Yes
Suitable for number of lamps : 0
Lamp holder : None
Material : Aluminum
Surface protection : Powder coating
Color housing : White
Material cover : Plastic, structured
Surface brushed : No
Voltage-type : AC
Nominal voltage (V) : 220 V to 240 V
LED nominal current at constant current (mA) : 28 mA to 28 mA
Type of control gear : LED operating device current-controlled
With control gear : Yes
Exchangeable control gear : Yes
Dimming depending on control gear : No
Dimming 0-10 V : No
Dimming 1-10 V : No
Dimming DALI-2 : No
Dimming DALI : No
Dimming DMX : No
Dimming DSI : No
Dimming potentiometer (integrated) : No
Dimming GPRS : No
Dimming LineSwitch : No
Dimming manufacturer’s proprietary system : No
Dimming mains voltage modulation : No
Dimming phase cut-off : No
Dimming phase cut-on : No
Dimming programmable : No
Dimming RF : No
Dimming Sine Wave Reduction : No
Dimming Touch and Dim : No
Dimming Zigbee : No
Dimming with push-button : No
No dim function : Yes
Reflector : None
Light distributor : Focal lens
Light sharing : Symmetric
Beam angle : Medium beam 21-40°
Light outlet : Direct
Energy efficiency class : A++
Energy efficiency class of the built-in lamp : A++, A+, A (LED)
Total harmonic distortion : 15
Rated life time L70/B50 at 25 °C (h) : 50000
Rated life time L80/B10 at 25 °C (h) : 40000
Constant light output (CLO) : No
Degree of protection (IP) : IP20
Impact strength : IK06
Protection class : II
Rated ambient temperature according to IEC62722-2-1 (°C) : -20 °C to 45 °C
Suitable for lamp power (W) : 6.5 W to 6.5 W
Max. system power (W) : 6.5
Colour of light : White
Colour temperature (K) : 3000 K to 3000 K
Color rendering index CRI : 80-89
Luminous flux (lm) : 550 lm to 550 lm
Rated luminous flux according to IEC 62722-2-1 (lm) : 550
Power factor : 0.9
Color temperature adjustable : No
Luminous flux adjustable : No
Beam angle adjustable : No
Width (mm) : 80
Height/depth (mm) : 36
Length (mm) : 80
Outer-diameter (mm) : 80
Built-in width (mm) : 68
Built-in height/depth (mm) : 90
Built-in length (mm) : 68
Built-in diameter (mm) : 68 mm to 68 mm
Type of wiring : Ending
Number of poles : 2
Connection type : Other
Luminaire with limited surface temperature, sign “D“ : No
Max. number of luminaires per miniature circuit breaker B16 : 32
Max. number of luminaires per miniature circuit breaker C16 : 41
Emergency power supply integrated : No
Filament test according to IEC 60695-2-11 : 650 °C – 30 s
Luminaire efficacy (lm/W) : 85
Photobiological safety according to EN 62471 : RG0
Suitable for workplace according to EN 12464-1 : No
Covering of the luminaire with thermally insulating material possible : No
IFTTT support available : Yes
Color consistency (McAdam ellipse) : SDCM4
Compatible with Apple HomeKit : No
Compatible with Google Assistant : No
Compatible with Amazon Alexa : No
