About this item

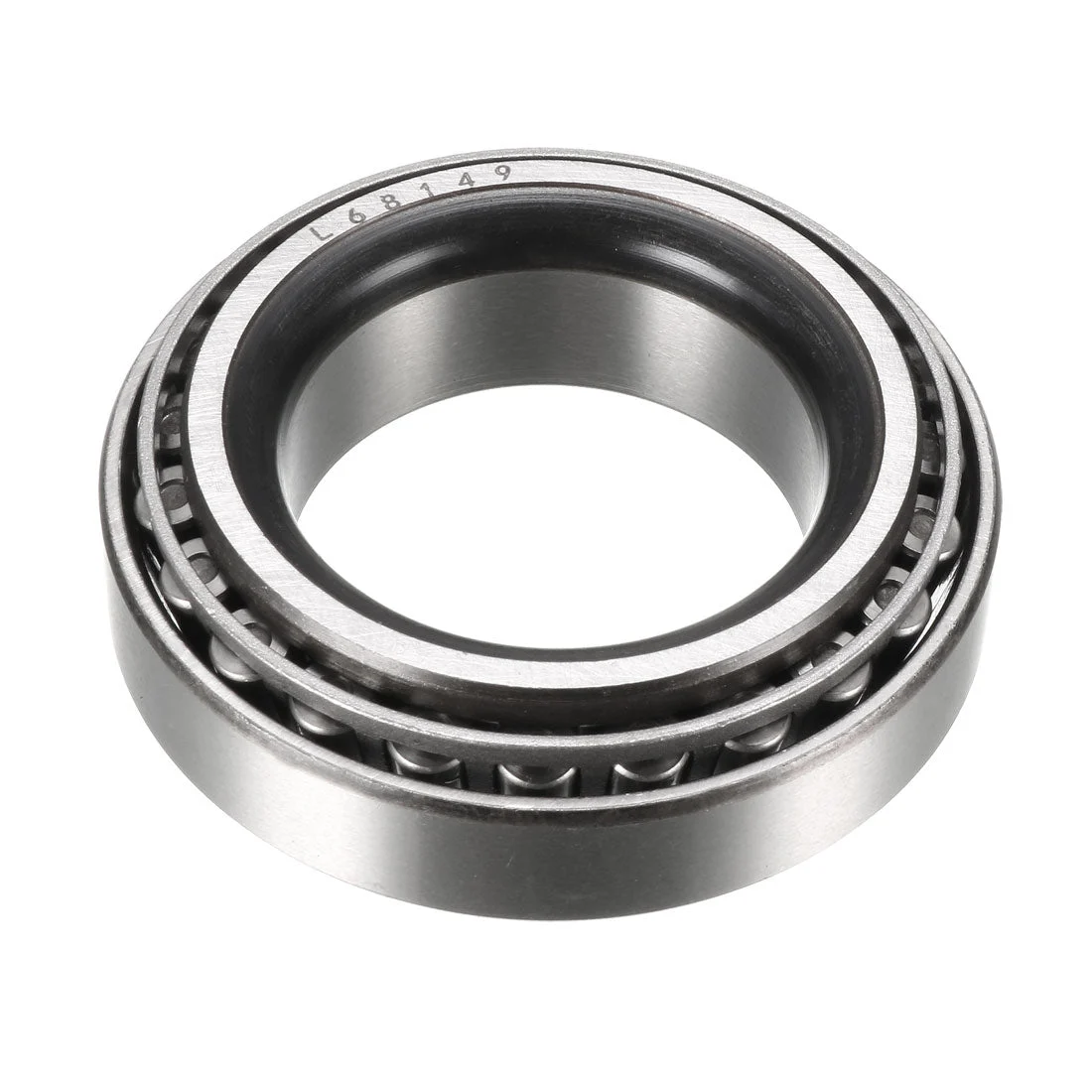

- Model: L68149/L68110 (Bore: 34.989mm / 1.3775″, Outer Diameter: 59.131mm / 2.328″, Width: 15.875mm / 0.625″)
- Single row tapered roller bearings must be used either with a second bearing or as a matched pair
- Components are separable and interchangeable that easy for maintenance
- Features low friction and low noise that provide operational reliability
- Static Load Rating of 48.7kN and Dynamic Load Rating of 45.5kN
Description:
- Single Row Tapered Roller Bearings are designed to accommodate combined loads.
- These bearings consist of an inner ring (cone), an outer ring (cup), a cage and rollers, which distributes radial and loads evenly across the roller.
- The inner ring with roller and cage assembly (cone) can be mounted separately from the outer ring (cup).
- The separable components are interchangeable, which facilitate mounting, dismounting and also maintenance inspection routines.
- This single tapered roller bearing is for use in high-load, moderate-speed applications that include conveyor systems.
Specification:
Cone Model: L68149
Cup Model: L68110
Material: Chrome Steel
Bore Diameter: 34.989mm / 1.3775″
Outside Diameter: 59.131mm / 2.328″
Total Thickness: 15.875mm / 0.625″
Dynamic Load Rating (Cr): 45500N
Static Load Rating (Cor): 48700N
