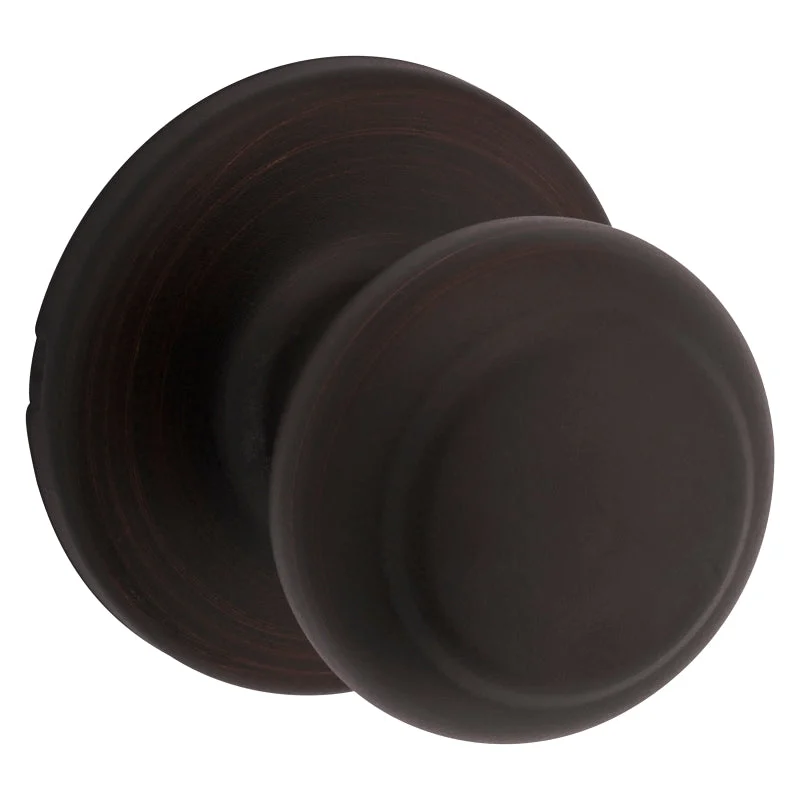

For hall and closet and all interior doors where a simple latch is all that is required. Both Colonial style knobs always free, no locking mechanism. Door prep 2-1/8 in cross bore, 1 in edge bore, 1 x 2-1/4 in latch face. Backset of 2-3/8 in standard and adjustable to 2-3/8 to 2-3/4 in optional. Thk doorness 1-3/8 to 1-3/4 in. Cylinder 5-pin. Faceplate 1 x 2-1/4 in. Strike of 2-1/4 in full lip. Bolt 1/2 in throw. Reversible for right or left hand doors. ANSI/BHMA Grade 3.
Unit: CD
UPC: 883351589512
Model Number: 200CV 11P CP
Features
- Features adjustable latch to fit all standard door preparations
- Exposed screws on the interior knob
- Kwikset door knobs are available in multiple styles and finishes
Additional Information
- Bolt Throw Size: 1/2 in
- Cross Bore Diameter: 2-1/8 in
- Dimensions: 2-3/16 in Dia
- Door Handing: Left Right
- Door Thickness: 1-3/4 to 1-3/8 in
- Edge Bore Diameter: 1 in
- Faceplate Size: 1 x 2-1/4 in
- Finish: Venetian Bronze
- Security Grade: 3
- Strike Size: 2-1/4 in
- Strike Type: Full Lip
- Suitable for: Closet and Hallway Interior Doors
- Throw Length: 1/2 in
