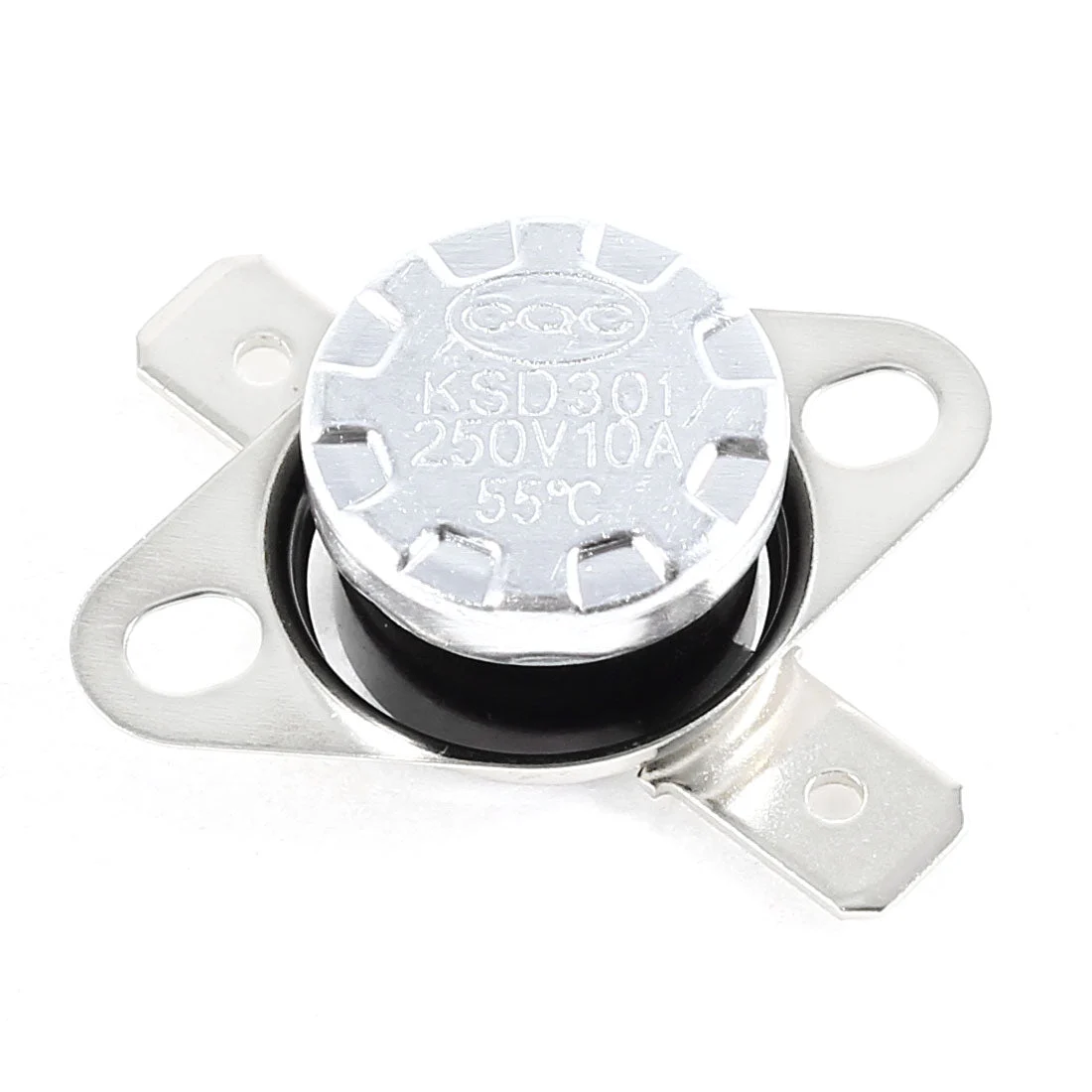

KSD301 AC 250V 10A 55C Celsius NC Temperature Control Switch Thermostat

About this item

• Product Name : Temperature Control Switch;Model.No : KSD301;Action Type : Normally Close(NC)
• Action Temperature : 55C;Voltage : AC 250V;Current : 10A
• Insulation resistance : Max. 100 Mohm;Size : 3.4 x 1.6 x 1.2cm/1.3″ x 0.6″ x 0.5″(L*D*H);Mounting Hole Size : 4.4 x 3.5mm/0.2″ x 0.1″(L*W)
• Mounting Hole Center Distance : 24mm/0.9″;Material : Metal, Plastic;Color : Black, Silver Tone
• Net Weight : 5g;Package Content : 1 x Temperature Control Switch

• It is close until the surface reaches 55 Celsius degree and then the switch open. Automatically reset
• When the surface cools off about 5 degrees, the switch automatically close.
• Opening-closing durability: 10000 times or more (under rated load).
• General-purpose low cost, compact, large capacity, minute current thermostat.
• This KSD301 thermostat is used either as temperature control and safety limit for household electric appliances and widely applicable for coffee maker, water heater, immersion heaters, electric cookers, microwave ovens, automatic toasters, etc.
