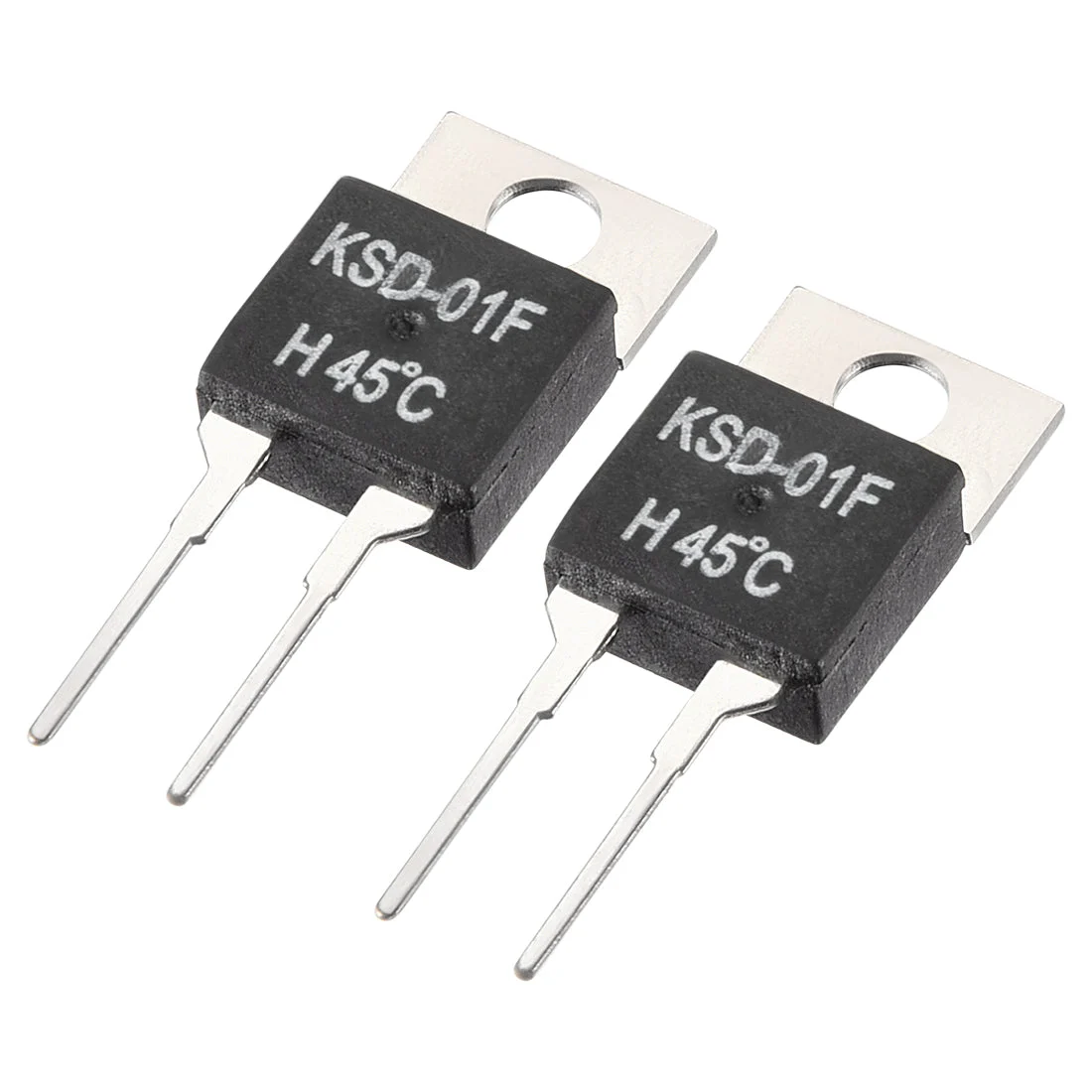

KSD-01F Thermostat, Temperature Controller 45℃ N.O Normal Open 2pcs

About this item

• Temperature : 45℃ ; Power : 220VAC 1A /24VDC 3A ; Contact : N.O(Normal Open)
• 45℃ N.O(Normal Open) KSD-01F Thermostat Temperature Control Switch Thermal Overload Protection
• General-purpose low cost, compact, large capacity, minute current thermostat
• Apply to circuit board of temperature control or thermal overload protection use
• Normally Open: The original state of temperature control switch contact is open, and close when the temperature sensing exceeds the rated temperature

Specification:

Product Name : Thermostat

Model : KSD-01F

Temperature : 45

Contact : N.O(Normal Open)

Power : 220VAC 1A /24VDC 3A

Circuit Resistance : 50m ohm

Insulation Resistance : 100M Ohm(500VDC)

Insulation Strength : 1500V/DC, 60Hz

Total Size : 30 x 10 x 5mm/1.18 x 0.39 x 0.2inch(L*W*H)

Package Content :

2pcs x Thermostat

Description:

1.KSD-01F 45 Temperature Control Switch Thermostat.

2.General-purpose low cost, compact, large capacity, minute current thermostat.

3.Apply to circuit board of temperature control or thermal overload protection use.
